Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower cover (A).
    Fig 1: Identifying Crash Pad Lower Cover
    G06525800Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the mount screws and then remove the glove box (A)
    Fig 2: Identifying Glove Box & Mount Screws
    G06525801Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the shower duct (A).
    Fig 3: Identifying Shower Duct
    G06525802Courtesy of KIA MOTORS AMERICA, INC.
  5. Loosen the mounting screws and then remove the temperature control actuator (B).

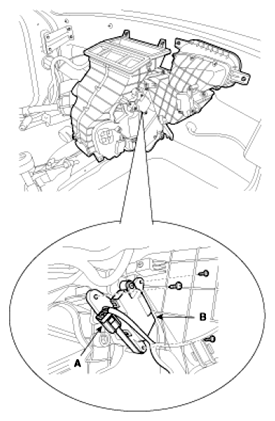

    Fig 4: Identifying Temperature Control Actuator & Mounting Screws
    G06525803Courtesy of KIA MOTORS AMERICA, INC.
  6. Installation is the reverse order of removal.
