Components And Component Locations: Component

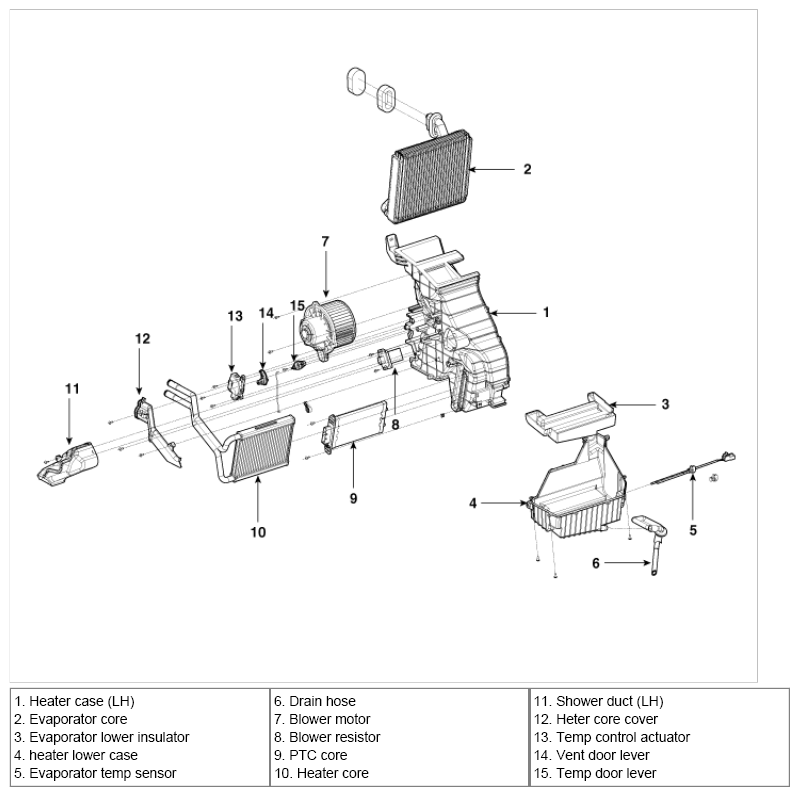

Fig 1: Exploded View Of Heater Unit (LH)

G06525780

Courtesy of KIA MOTORS AMERICA, INC.

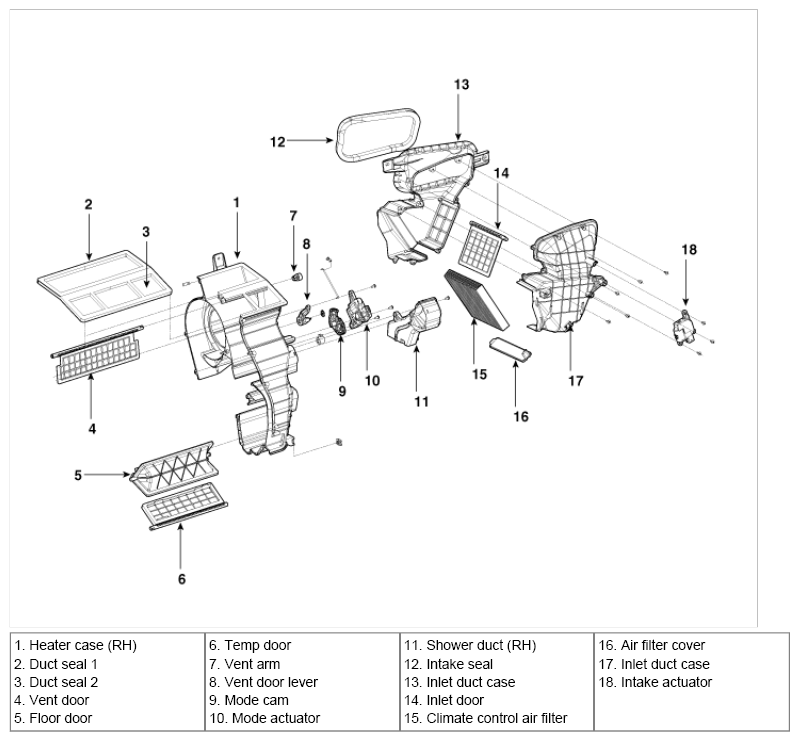

Fig 2: Exploded View Of Heater Unit (RH)

G06525781

Courtesy of KIA MOTORS AMERICA, INC.
