Ambient sensor: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper (Refer to BUMPERS .
  3. Disconnect the connector and then remove the ambient temperature sensor (A).

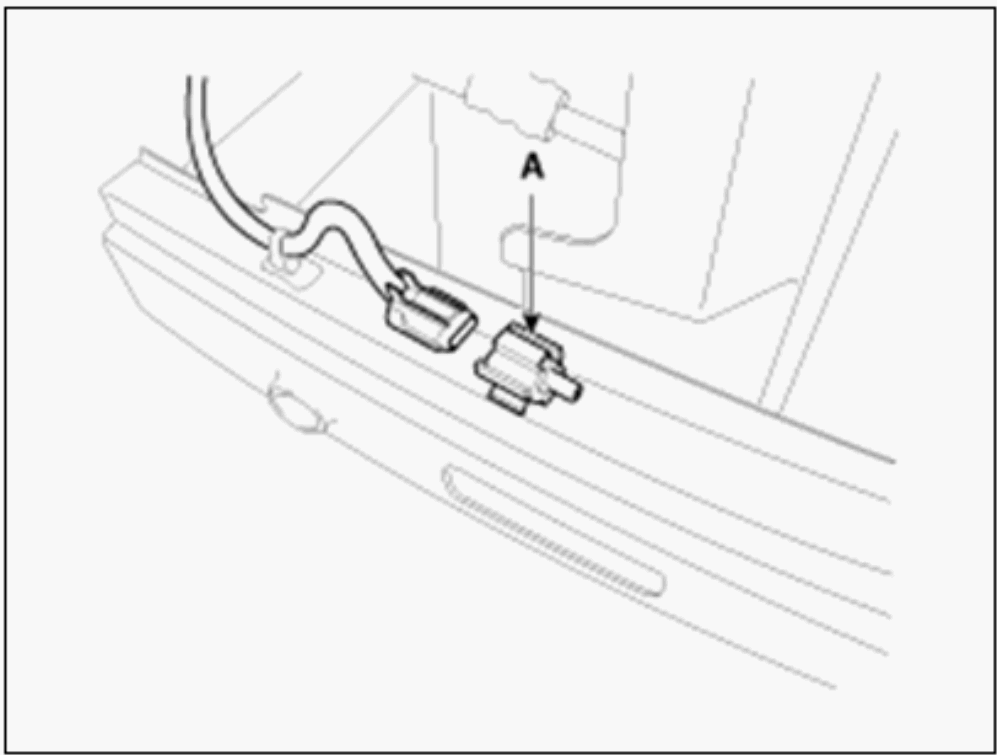

    Fig 1: Identifying Connector Of Ambient Sensor (A)
    G00522437Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
