Monitor Scantool Data

  1. Check status
    1. IGN "ON" & Engine "OFF"
    2. Monitor the "ECM, Key, and Smartra Status" Parameters on the Scantool.

      Specification:  'LEARNT'

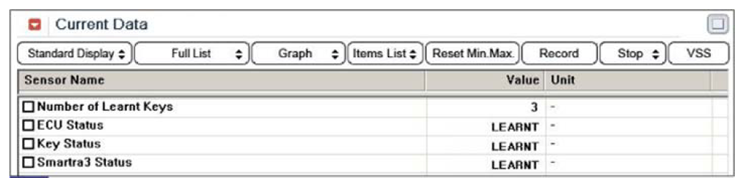

      Fig 1: Monitoring ECM, Key, & Smartra Status Parameters On Scantool
      G06523785Courtesy of KIA MOTORS AMERICA, INC.
    3. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameters within specifications?

      YES

      • Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Also check if this DTC was not erased after previous repair. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO
