Components and Component Locations: Components

[Mood Lamp Switch]

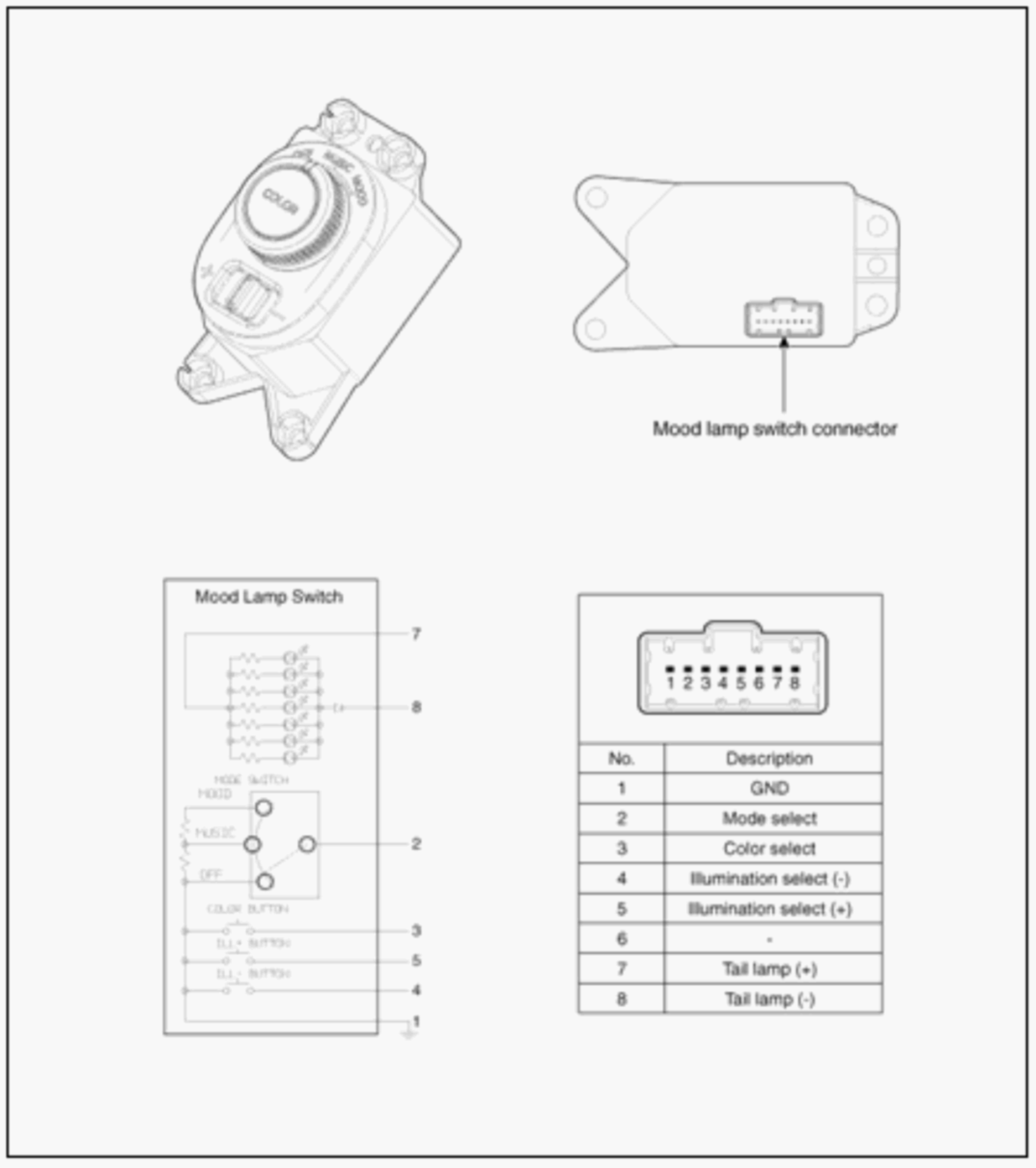

Fig 1: Mood Lamp Circuit Diagram
G00522422Courtesy of KIA MOTORS AMERICA, INC.

[Mood Lamp Unit]

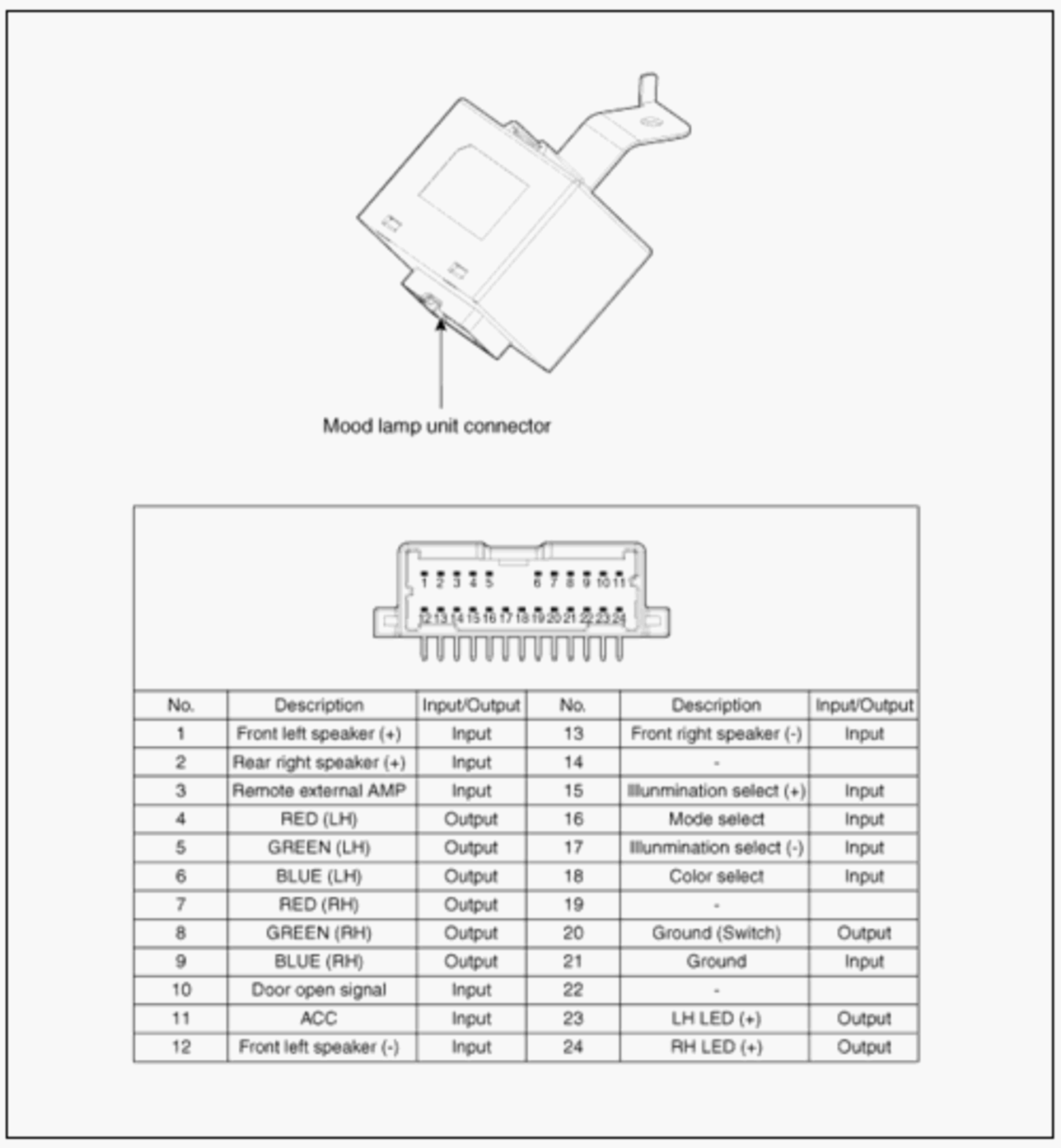

Fig 2: Mood Lamp Unit Terminal Diagram
G00522423Courtesy of KIA MOTORS AMERICA, INC.
