Component And Components Location: Components

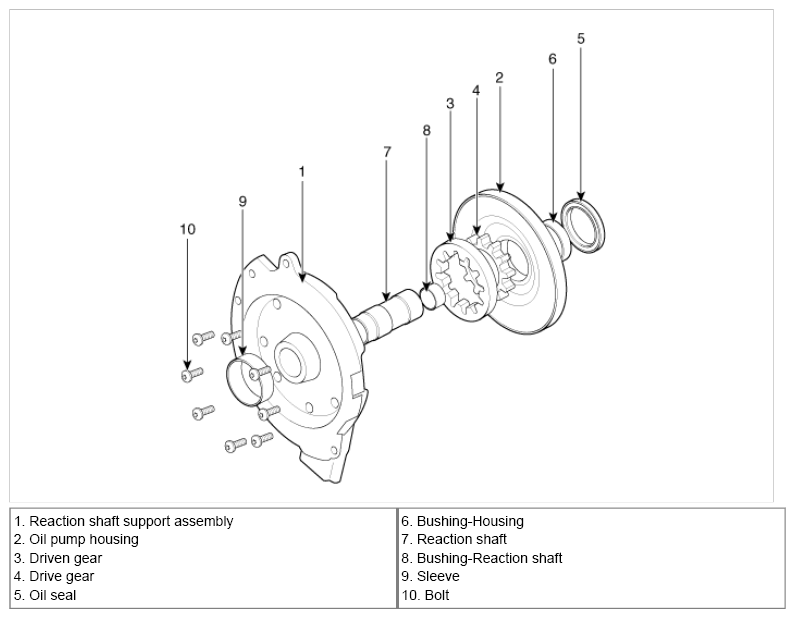

Fig 1: Exploded View Of Oil Pump

G07381812

Courtesy of KIA MOTORS AMERICA, INC.
