Chart 4

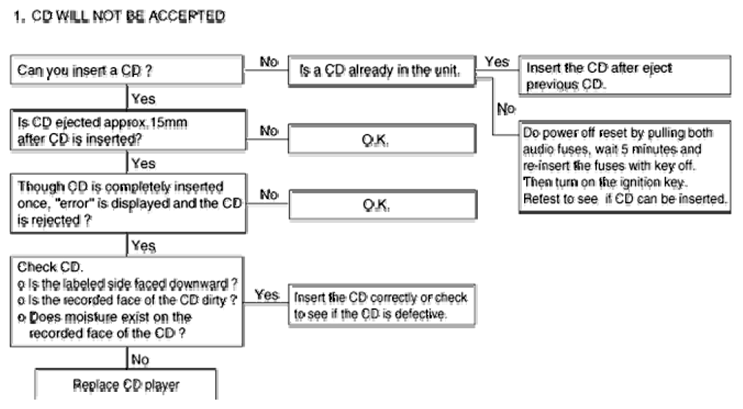

Fig 1: Diagnostic Flow Chart 4 - CD Will Not Be Accepted

Courtesy of KIA MOTORS AMERICA, INC.

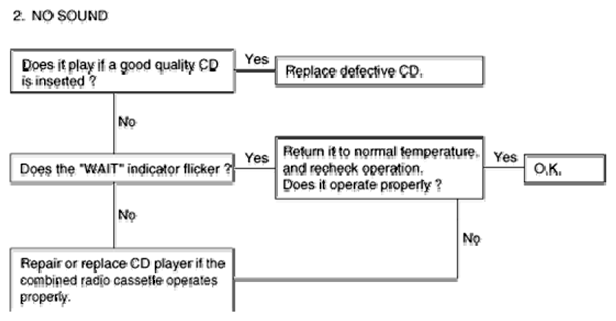

Fig 2: Diagnostic Flow Chart 4 - No Sound

Courtesy of KIA MOTORS AMERICA, INC.

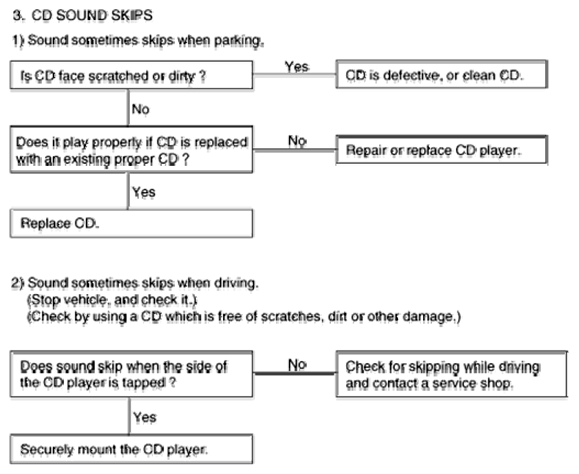

Fig 3: Diagnostic Flow Chart 4 - CD Sound Skips

Courtesy of KIA MOTORS AMERICA, INC.

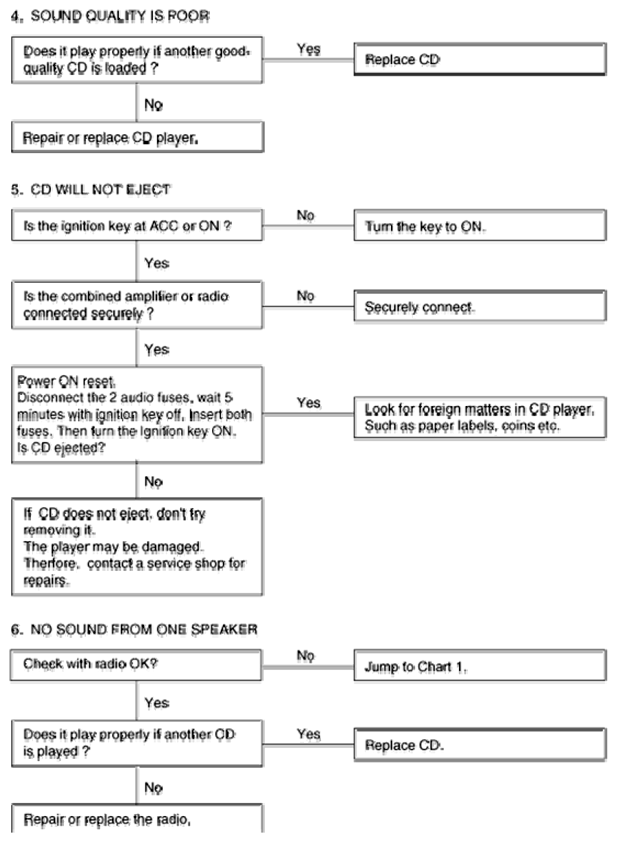

Fig 4: Diagnostic Flow Chart 4 - Poor Sound Quality / CD Will Not Eject / No Sound From One Speaker

Courtesy of KIA MOTORS AMERICA, INC.
