Engine Mechanical System: Components

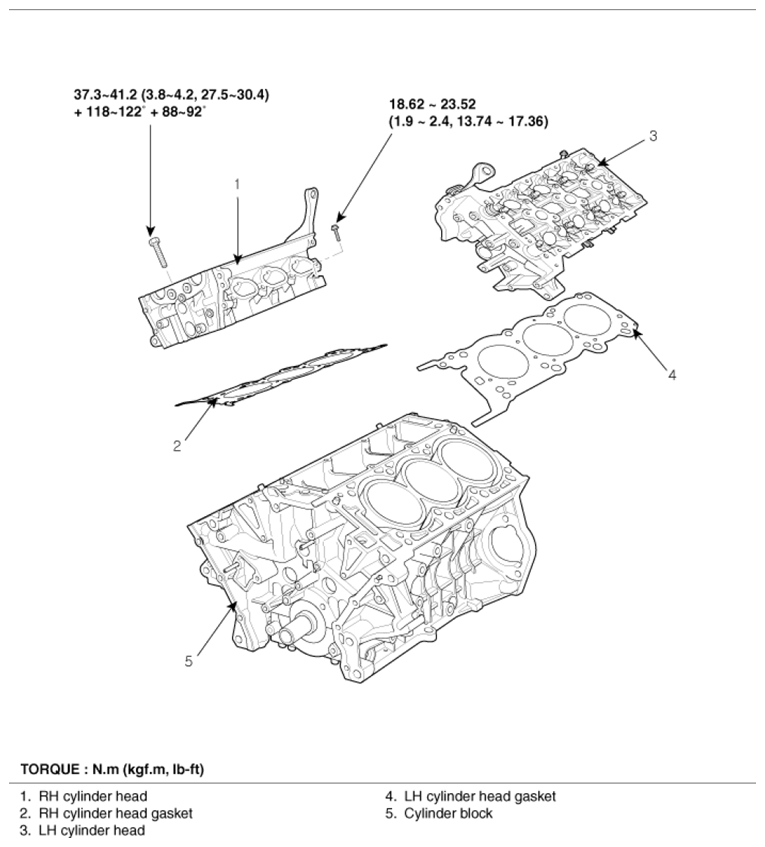

Fig 1: Cylinder Head Assembly Components With Torque Specifications (1 Of 2)
G06837773Courtesy of KIA MOTORS AMERICA, INC.

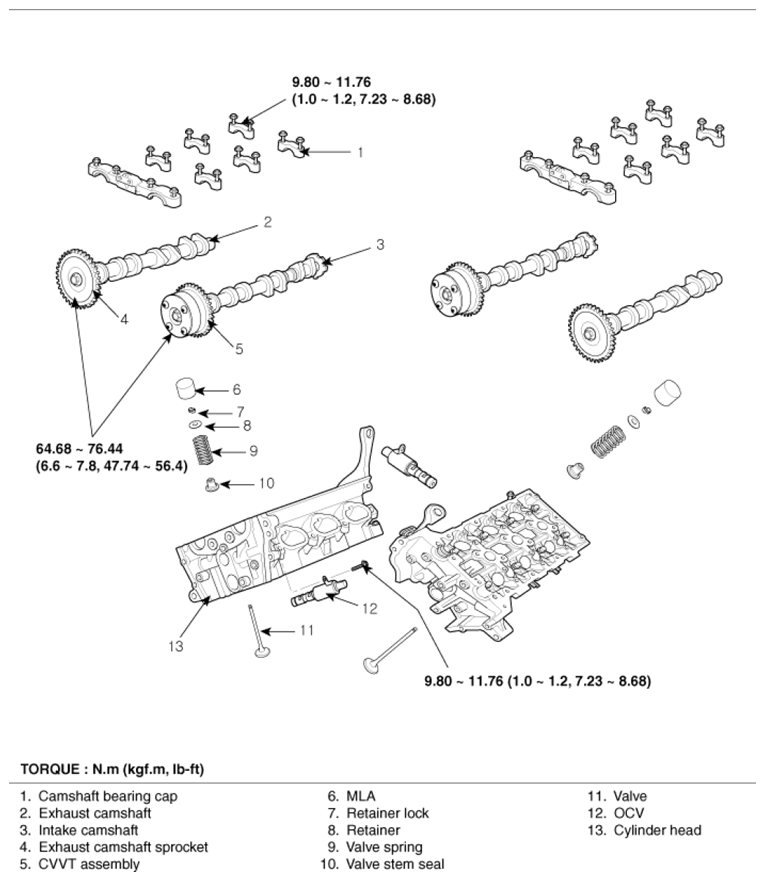

Fig 2: Cylinder Head Assembly Components With Torque Specifications (2 Of 2)
G06837774Courtesy of KIA MOTORS AMERICA, INC.
