Engine Mechanical System: Component

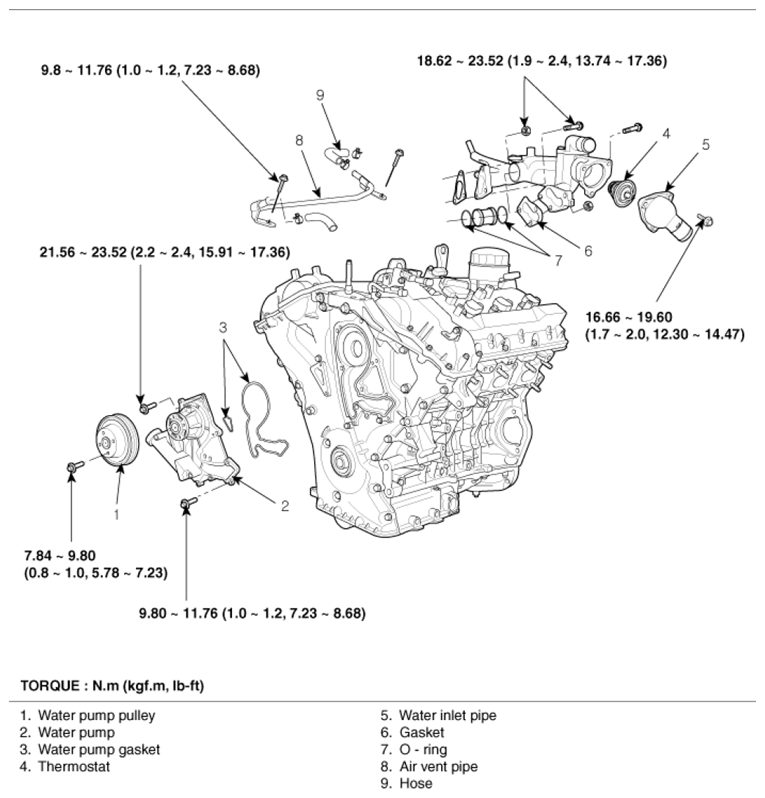

Fig 1: Cooling System Components With Torque Specifications
G06837860Courtesy of KIA MOTORS AMERICA, INC.

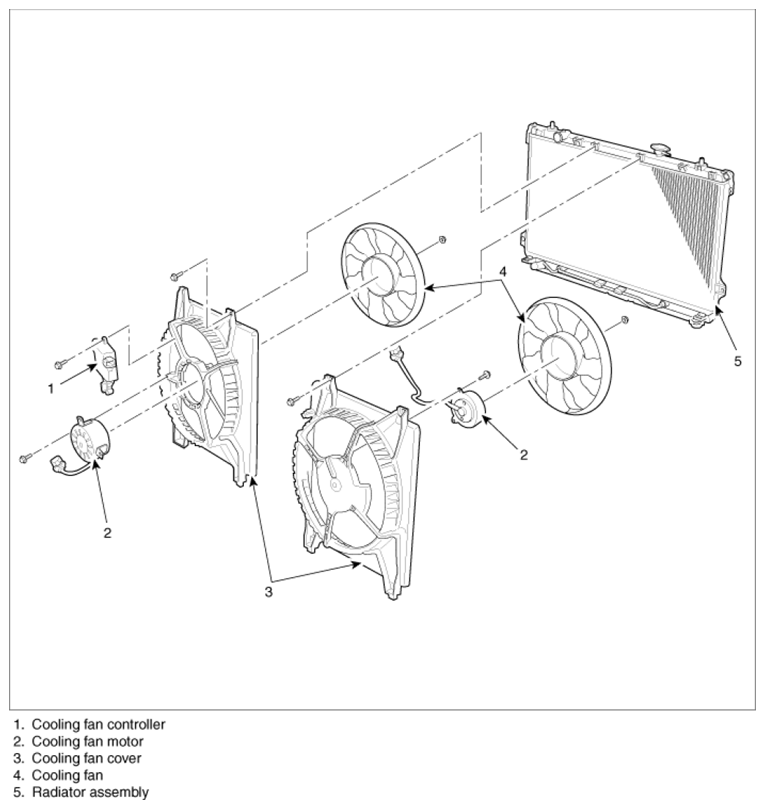

Fig 2: Identifying Cooling System Component
G06837861Courtesy of KIA MOTORS AMERICA, INC.
