Components and Components Location: Components

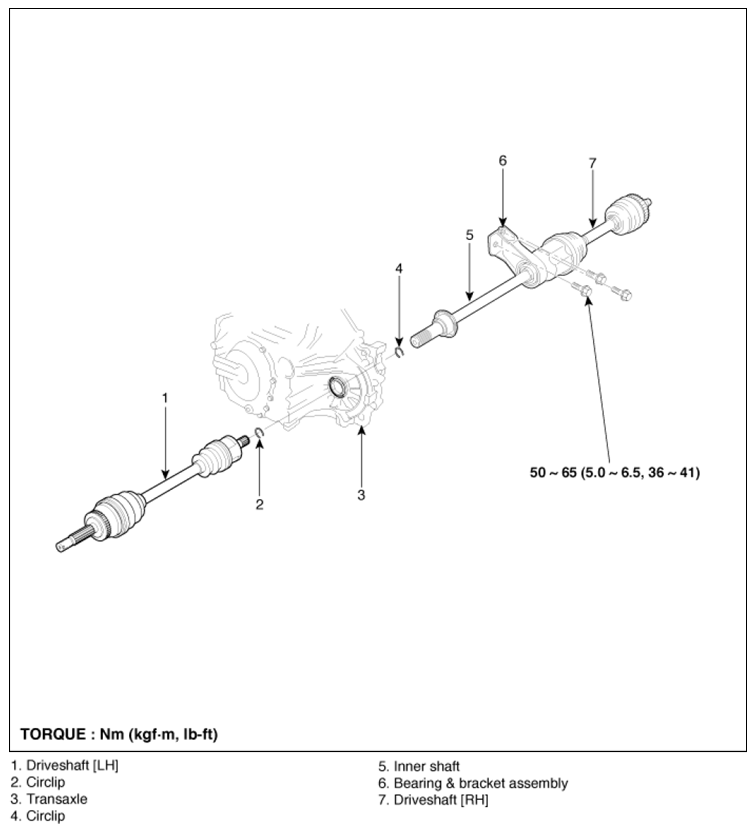

Fig 1: Driveshaft Assembly Replacement Components With Torque Specifications

Courtesy of KIA MOTORS AMERICA, INC.

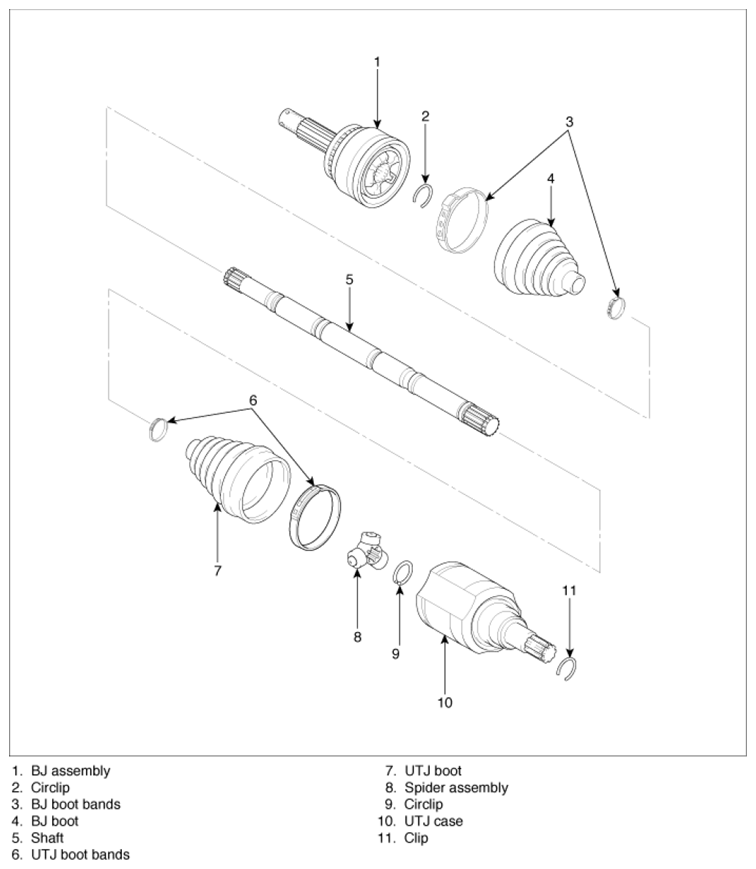

Fig 1: Identifying Driveshaft Assembly Components

Courtesy of KIA MOTORS AMERICA, INC.
