Components And Component Locations: Components

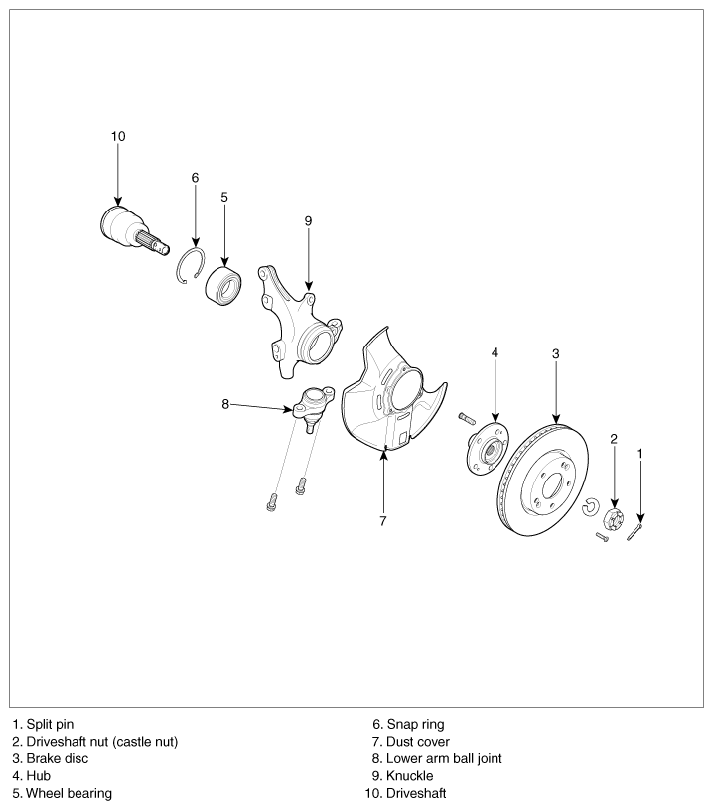

Fig 1: Identifying Front Axle Components

G06386521

Courtesy of KIA MOTORS AMERICA, INC.
