Center Fascia Panel Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Put on gloves to protect your hands.

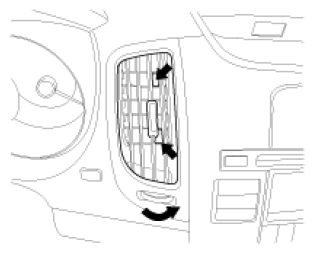

Set the air vent hole to the center by adjusting the knob.
Open the air vent by adjusting the knob.
Insert the Air Vent Remover (09840-1M100) into the air vent hole.

Fig 1: Identifying Air Vent Remover Insertion Point
Courtesy of KIA MOTORS AMERICA, INC.
Air vent remover (09840-1M100 (A)) should be aligned and hung at the end of the air vent.

Fig 2: Aligning Air Vent Remover (Rear View)
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
- To prevent the damage of air vent, air vent remover should be aligned and hung at the end of the air vent.

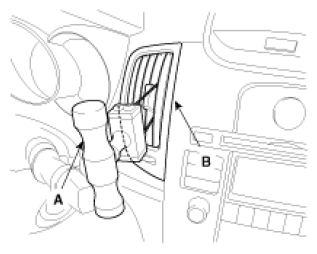

Remove the center air vent (B) by pulling the Air Vent Remover (A).

Fig 3: Removing Center Air Vent Using Air Vent Remover
Courtesy of KIA MOTORS AMERICA, INC.

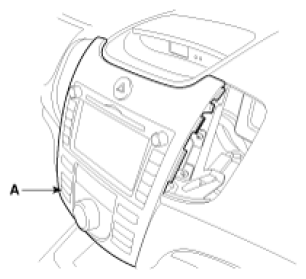

Remove the center fascia panel (A).

Fig 4: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

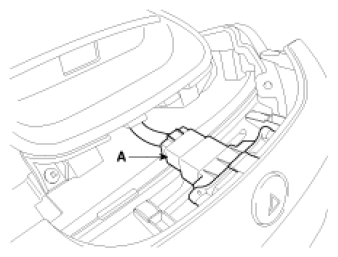

Disconnect the connector (A).

Fig 5: Identifying Connector
Courtesy of KIA MOTORS AMERICA, INC.

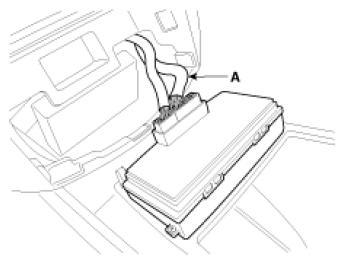

Disconnect the heater control unit connector (A).

Fig 6: Identifying Heater Control Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
