Components and Components Location: Components

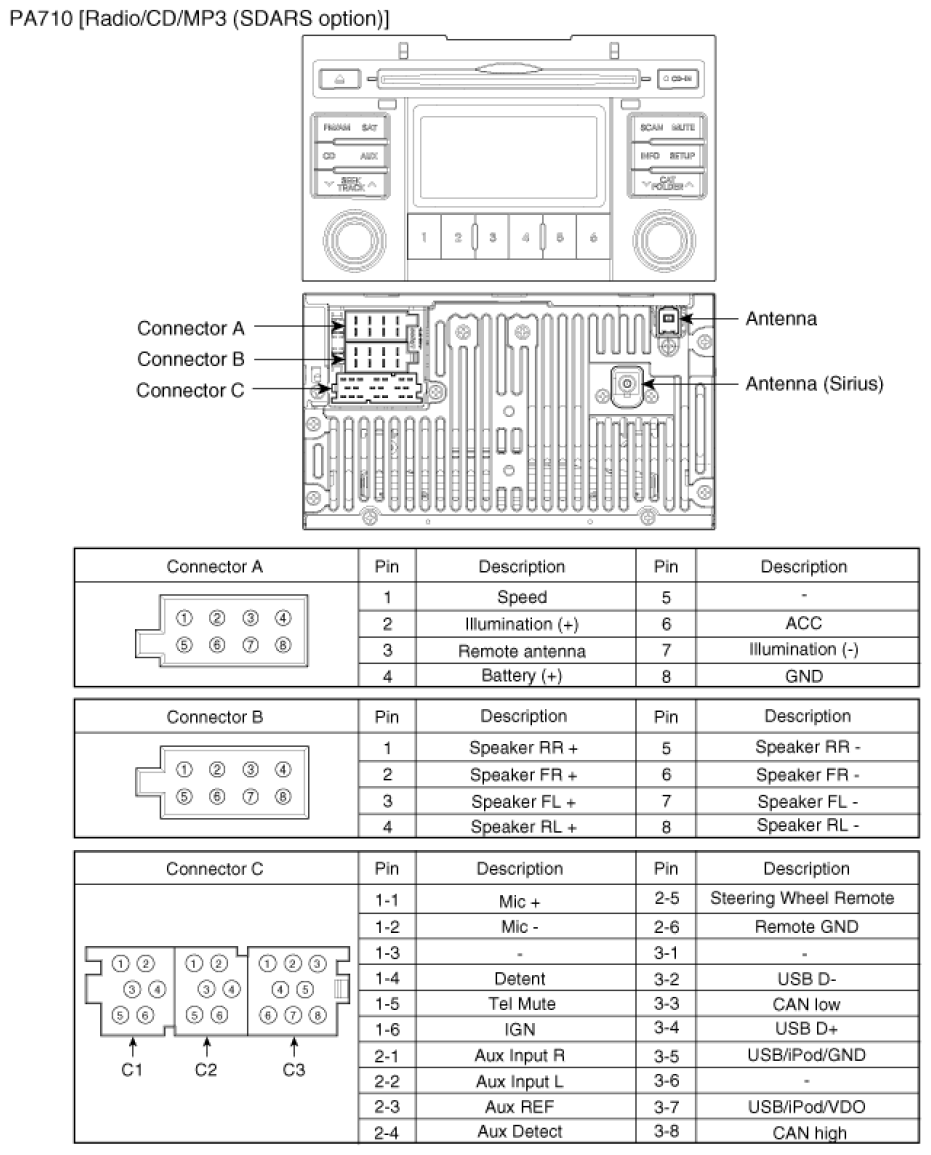

Fig 1: Identifying Audio Unit Components & Terminals (1 Of 2)
G06495965Courtesy of KIA MOTORS AMERICA, INC.

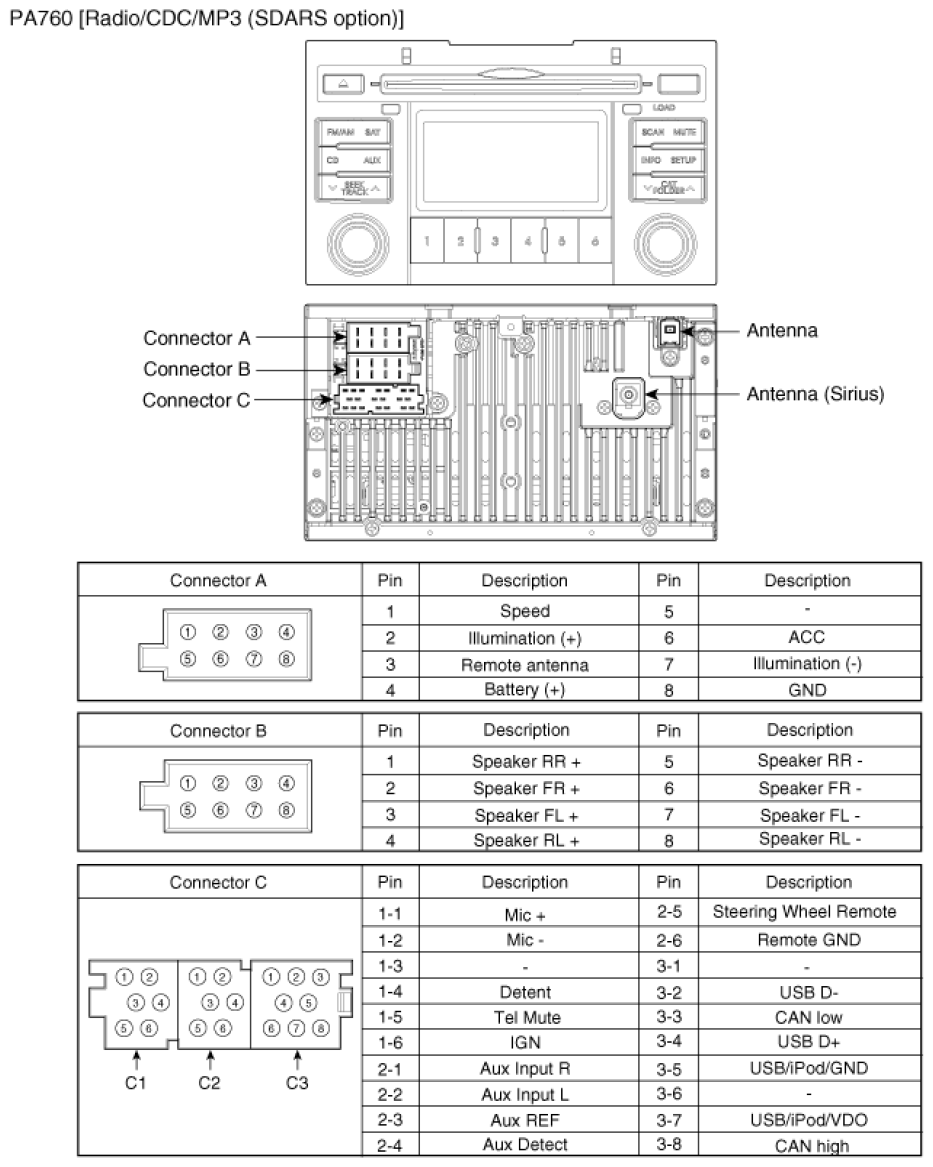

Fig 2: Identifying Audio Unit Components Location & Terminals (2 Of 2)
G06495966Courtesy of KIA MOTORS AMERICA, INC.
