Automatic Trans
>>
Automatic Transaxle System
>>
Flow Diagram (A5SR2)
>>
R Range
R Range

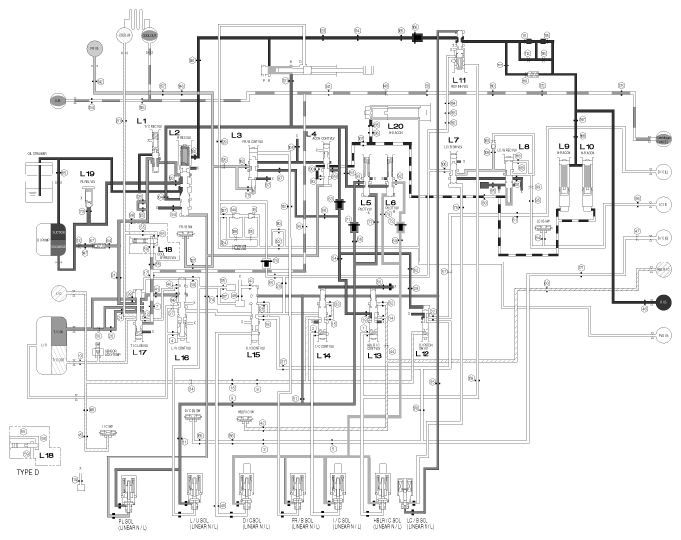

Fig 1: Valve Body Fluid Pressure Circuit Diagram - R Range
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
