Home >> Kia >> 2009 >> Sorento Base, A5SR2 >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Crankcase Emission Control System >> Components and Components Location >> Components

Components and Components Location: Components

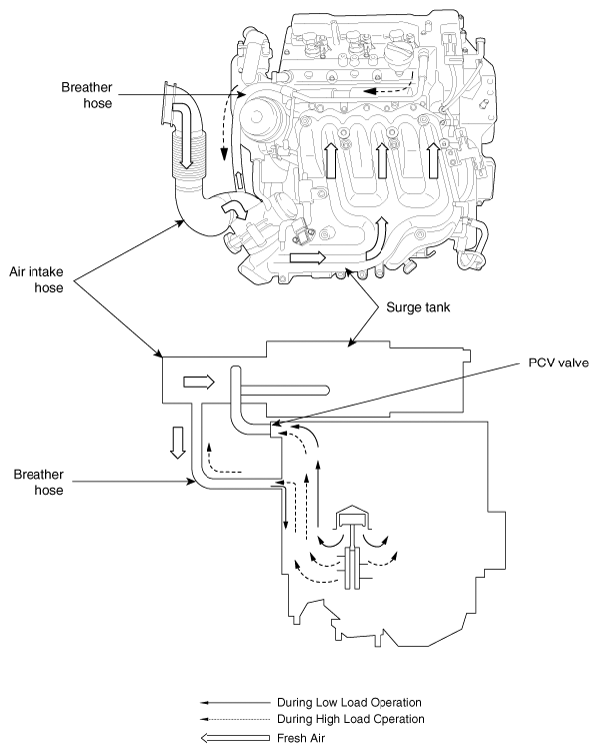

Fig 1: Identifying Crankcase Emission Control System Components

G06407991

Courtesy of KIA MOTORS AMERICA, INC.
