Evaporative Emission Control System: Description: Components

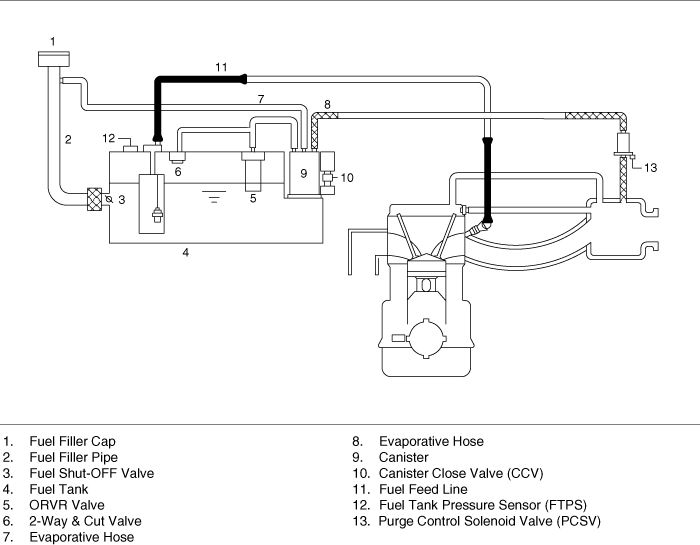

Fig 1: Identifying Components

G00485626

Courtesy of KIA MOTORS AMERICA, INC.
