Monitor Actuation Test

Connect scan tool to Data Link Connector (DLC)
Ignition "ON" & Engine "OFF".
Select the "Actuation Test" mode on the scan tool.
Inspect operating status of all valves with Actuation Test.
Specification: It's normal if operating sound is heard.

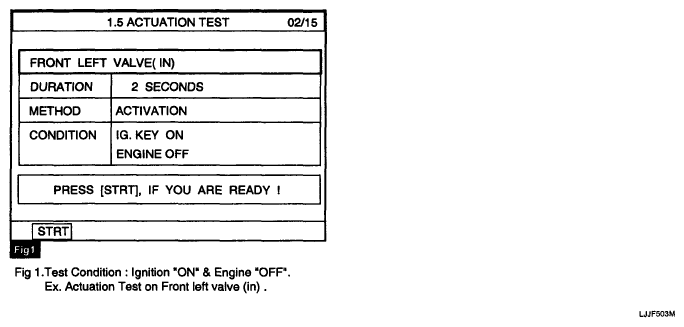

Fig 1: Scan Tool Display - ACTUATION TEST MODE
Courtesy of KIA MOTORS AMERICA, INC.
Do all valves operate normally?
YES
- Fault is intermittent caused by poor connection in power harness (ABS1) and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next step.
