Rio Base, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle System
>>
Hydraulic Control System
>>
Automatic Transaxle Hydraulic Circuit
>>
Parking And Neutral
Parking And Neutral

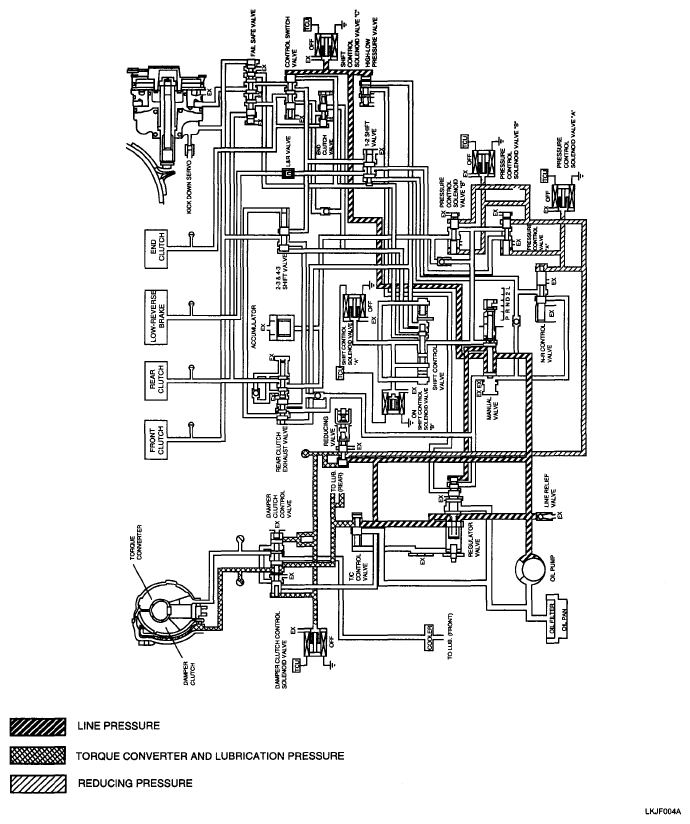

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
