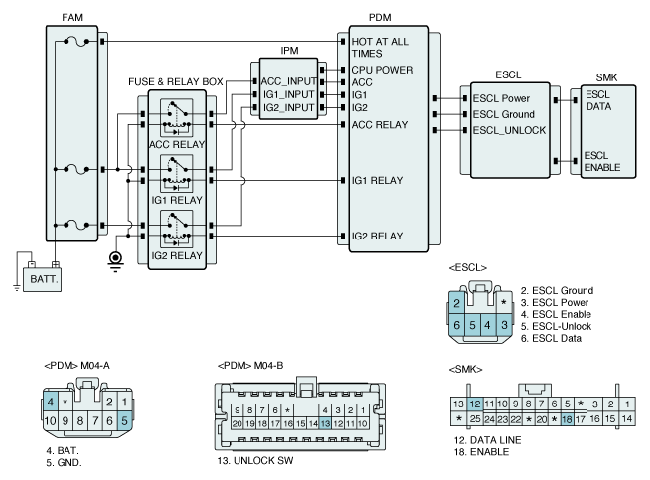

Home >> Kia >> 2009 >> Borrego LX, 4.6 2 >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> PDM (Power Distribution Module) >> B1990 ESCL Battery Short Circuit To Ground >> Diagnostic Circuit Diagram
