Front Stabilizer Bar: Components

WARNING: This page is about a different car, the 2007 Kia Optima, 2007 Kia Magentis, 2006 Kia Optima, and 2006 Kia Magentis. However, it is still accessible from the selected car via links, so may be relevant.

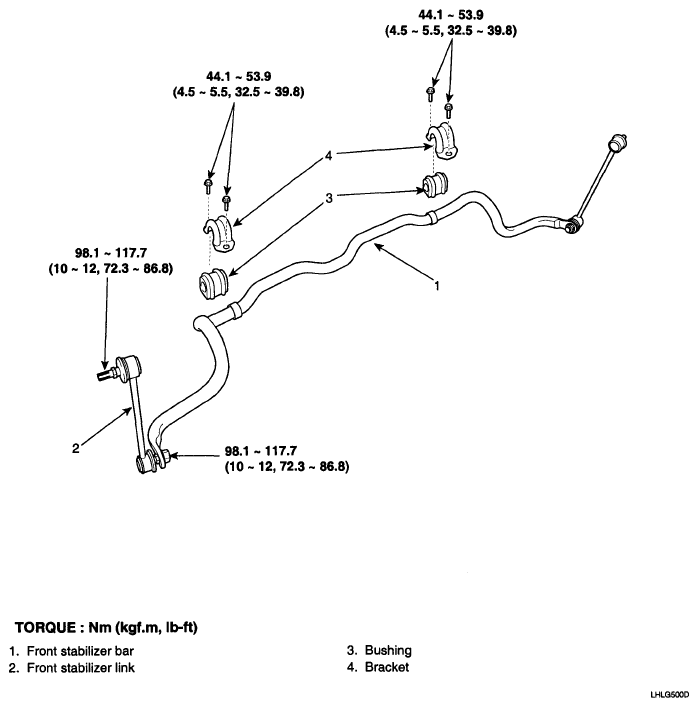

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications
G04805369Courtesy of KIA MOTORS AMERICA, INC.
