Roof Trim Replacement
NOTE:
- Put on gloves to protect your hands.
- When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
- Take care not to bend or scratch the trim and panels.
- Remove the following items.
- Front seat, rear seat assembly. See FRONT SEAT .
- FRONT, REAR DOOR SCUFF TRIM
- FRONT PILLAR TRIM
- CENTER LOWER, UPPER PILLAR TRIM
- REAR PILLAR TRIM
- OVERHEAD CONSOLE
- ROOM LAMP
- SUNVISOR & ASSIST HANDLE
- VANITY LAMP AND HANDS FREE MIC

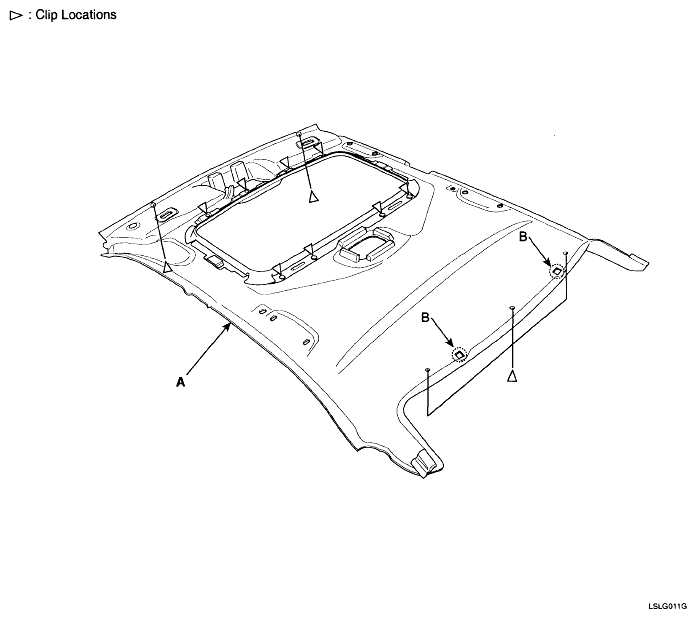

- Remove the connector (B).
- Remove the roof trim (A).
- Installation is the reverse of removal.NOTE:
- Replace any damaged clips.
