Cowl Cross Bar Assembly Replacement

NOTE:

When removing trim components that require prying, use a suitable trim tool, not a screwdriver. Gently pry on the component to avoid damage.
Put on gloves to protect your hands.

Remove the CRASH PAD .
Remove the connectors.
Loosen the bolts and nuts, then remove cowl cross bar assembly (A).

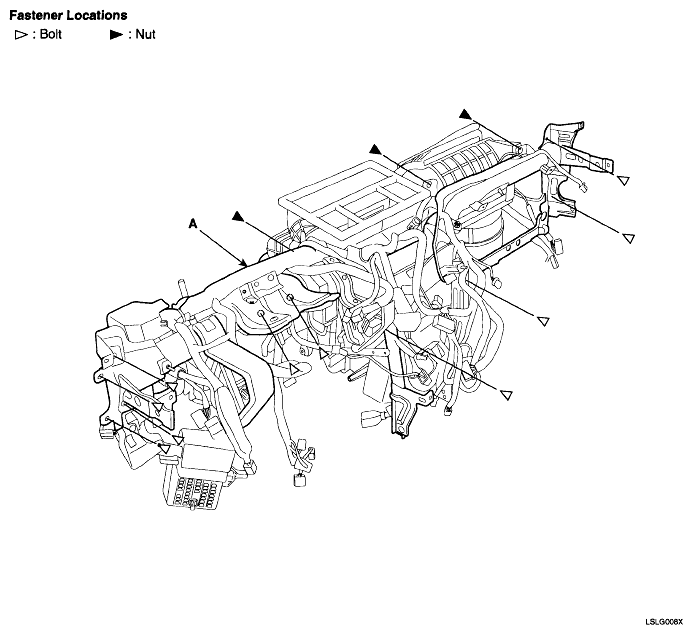

Fig 1: Identifying Cowl Cross Bar Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
CAUTION:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly,
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
