Lubrication System - 2.7L: Component

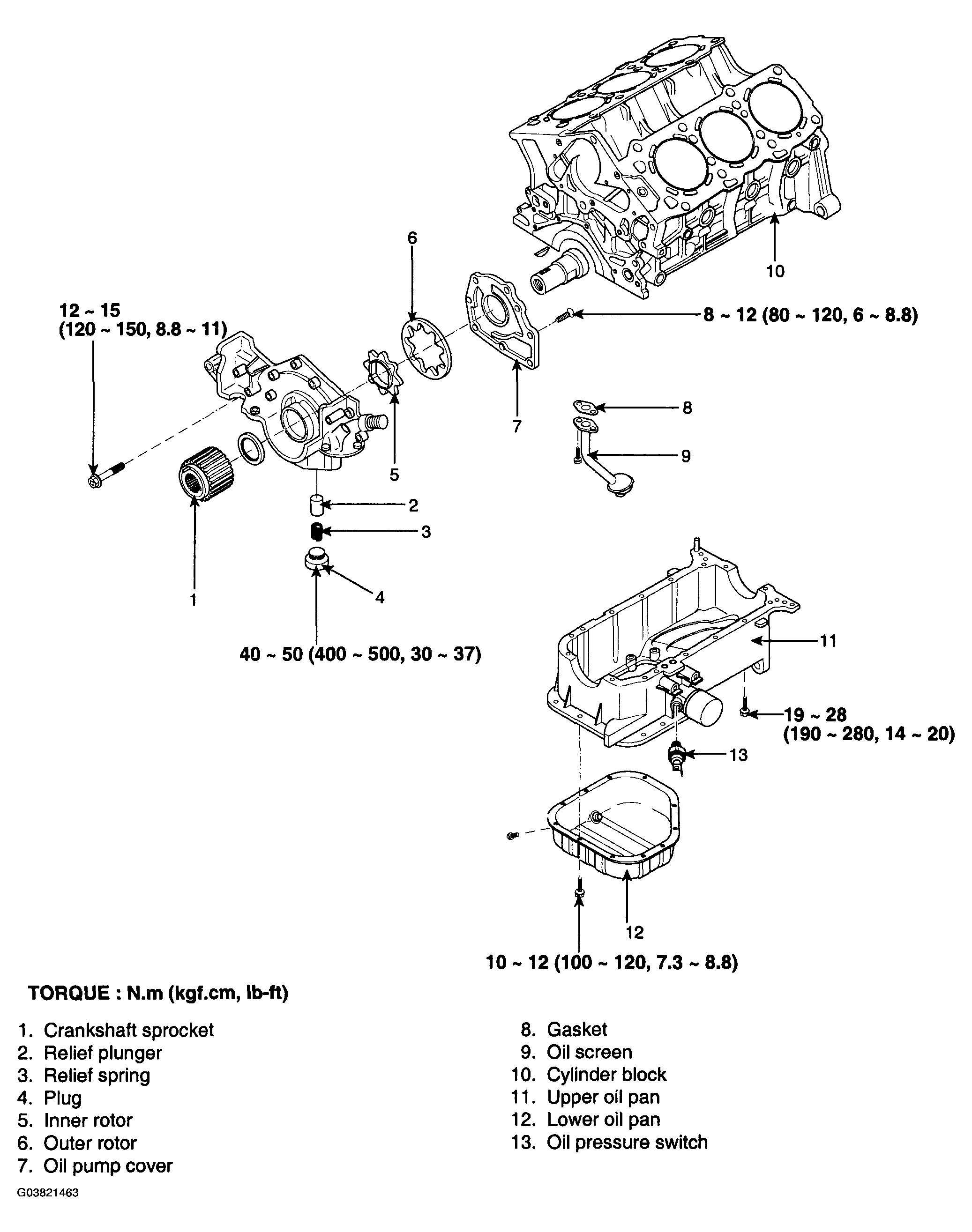

Fig 1: Exploded View Of Engine Lubrication System Components With Torque Specifications

G03821463

Courtesy of KIA MOTORS AMERICA, INC.
