Power MOSFET: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Disconnect the power mosfet connector (A) at the connecting part between heater and blower unit.
  3. Remove the power mosfet (B) after loosening the mounting screws.

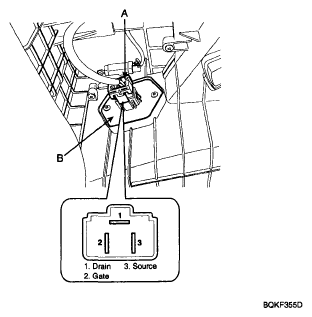

    Fig 1: Identifying Power Mosfet And Screw
    G04885375Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
