Blower Unit: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crush pad. (Refer to INTERIOR )
  3. Disconnect the connectors from the intake actuator, the blower motor and power mosfet.
  4. Remove the cowl cross bar assembly. (Refer to INTERIOR )
  5. Remove the blower unit (A) from the heater unit after loosening a mounting bolt and 2 screws.

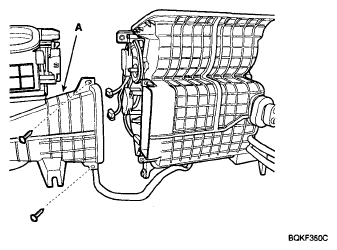

    Fig 1: Identifying Blower Unit And Screws
    G04885364Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Make sure that there is no air leaking out of the blower and duct joints.
  6. Installation is the reverse order of removal.
