Latch Assembly Replacement

  1. Remove the tailgate trim (See TAILGATE TRIM REPLACEMENT ).
  2. Disconnect the outside handle rod (A), connector (B)

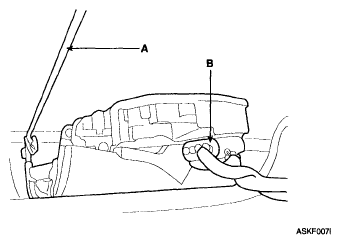

    Fig 1: Identifying Outside Handle Rod And Connector
    G04883971Courtesy of KIA MOTORS AMERICA, INC.
  3. After loosening the mounting screws, then remove the latch assembly (A).

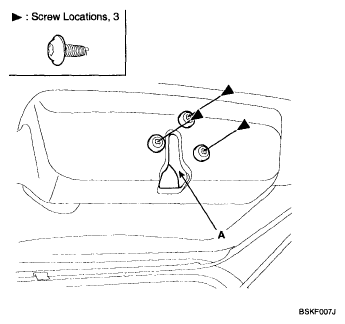

    Fig 2: Identifying Latch Assembly And Screw
    G04883972Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    • Make sure the connector is connected properly and the connecting rod is connected properly.
    • Make sure the tailgate opens properly and locks securely.
