Guide Assembly Replacement

  1. Remove the sunroof assembly (See SUNROOF ASSEMBLY REPLACEMENT ).
  2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide (B) to rear.

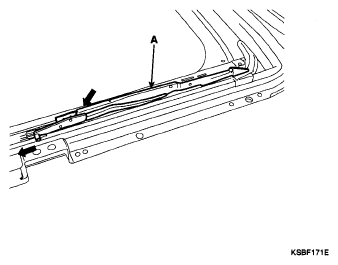

    Fig 1: Identifying Guide Assembly
    G04884056Courtesy of KIA MOTORS AMERICA, INC.

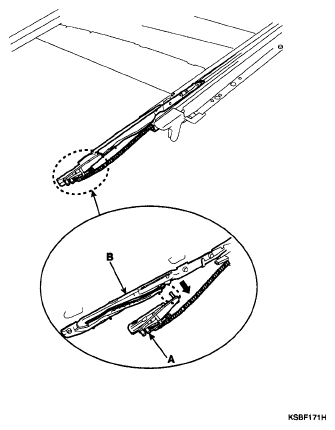

    3. Fig 2: Identifying Sliding Guide And Slide
    G04884057Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the guide (A) and slide (B).
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure to align the slide with the center of "A" and "B"
    • Make sure to initialize the motor.

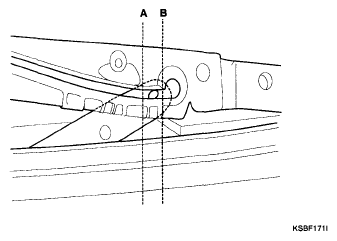

    Fig 3: Aligning Slide
    G04884058Courtesy of KIA MOTORS AMERICA, INC.
