Exterior/Interior Trim: Exterior: Fender: Replacement

NOTE:
  • Take care not to damage the hood and body.
  • When removing the clips, use a clip remover.
  1. Remove the following items.
    • Headlamp assembly (See HEAD LAMPS ).
    • Front bumper (See FRONT BUMPER ).
    • Side garnish (B), mud guide (C), cover (D).
  2. After loosening the fender mounting bolts, remove the fender (A).
  3. Installation is the reverse of removal.

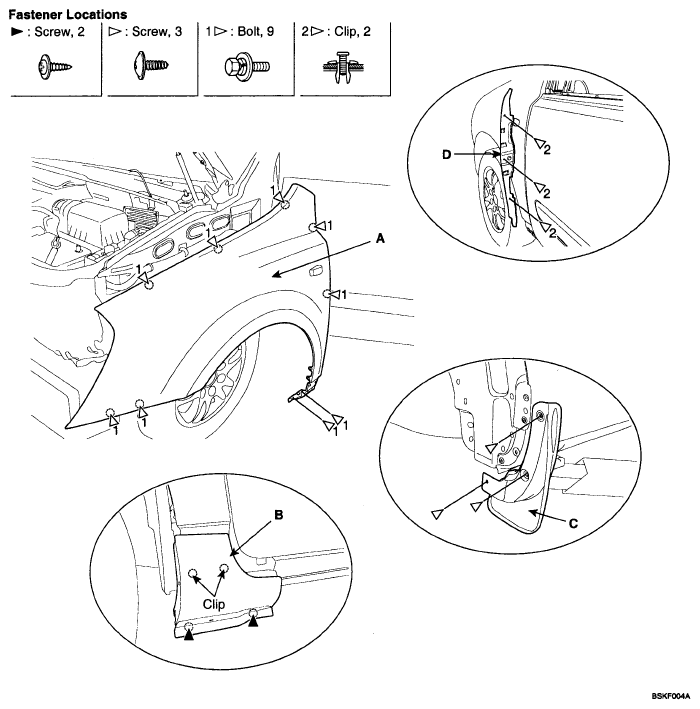

    Fig 1: Identifying Fastener Locations
    G04883949Courtesy of KIA MOTORS AMERICA, INC.
