Detent Switch: Inspection

Detent switch detects the latch position within latch assembly.

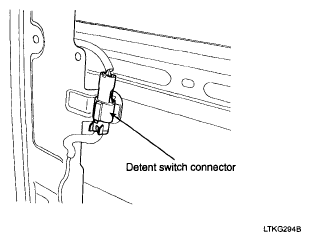

Fig 1: Identifying Detent Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Check the power sliding door control module input/output value by using the diagnostic tool.
When checking the detent switch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

Fig 2: Identifying Scan Tool Display - POWER SLIDING/TAILGATE
Courtesy of KIA MOTORS AMERICA, INC.
Select the "POWER SLIDING DOOR".

Fig 3: Identifying Scan Tool Display - POWER SLIDING LH
Courtesy of KIA MOTORS AMERICA, INC.
Select the detent sensor output. And then check the detent switch output with operating power sliding door.

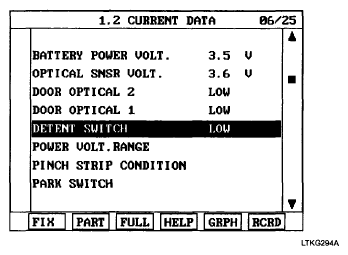

Fig 4: Identifying Scan Tool Display - DETENT SWITCH
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.
If there is no change in output, change the latch assembly.
