BCM Diagnosis With Scan Tool

It will be able to diagnose defects of BCM with scan tool quickly. Scan tool can operates actuator forcefully, input/output value monitoring and self diagnosis.
Select model and menu.

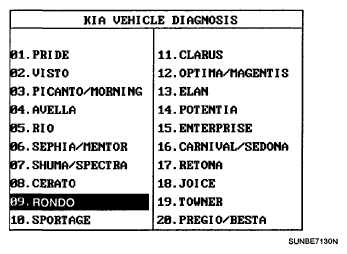

Fig 1: Scan Tool Display - RONDO
Courtesy of KIA MOTORS AMERICA, INC.

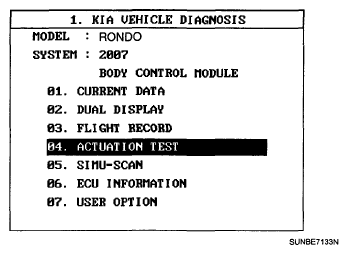

Fig 2: Scan Tool Display - BODY CONTROL MODULE
Courtesy of KIA MOTORS AMERICA, INC.
Select "Current data", if you will check current data of BCM. It provides power supply status, multi function status, lamp status, door status, lock system status, wiper, auto light status and so on.

Fig 3: Scan Tool Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.

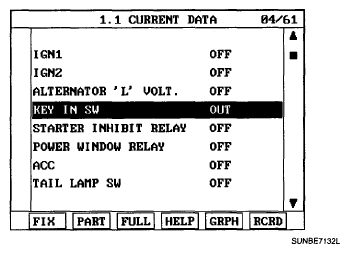

Fig 4: Scan Tool Display - KEY IN SW
Courtesy of KIA MOTORS AMERICA, INC.

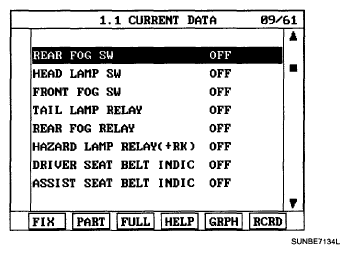

Fig 5: Scan Tool Display - REAR FOG SW
Courtesy of KIA MOTORS AMERICA, INC.

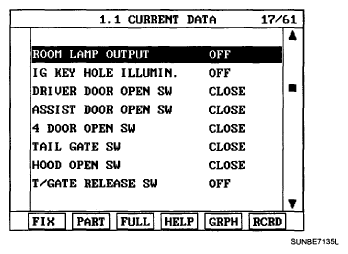

Fig 6: Scan Tool Display - ROOM LAMP OUTPUT
Courtesy of KIA MOTORS AMERICA, INC.

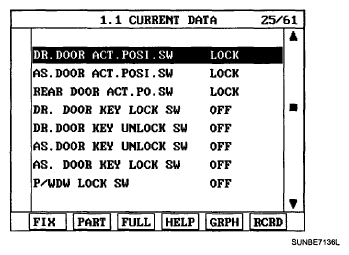

Fig 7: Scan Tool Display - DR. DOOR ACT. POSI. SW
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Scan Tool Display - FRONT WASHER SWITCH
Courtesy of KIA MOTORS AMERICA, INC.

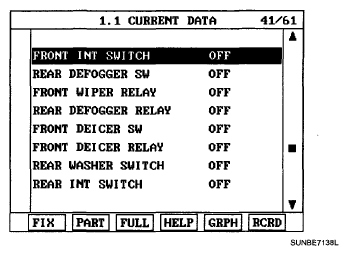

Fig 9: Scan Tool Display - FRONT INT SWITCH
Courtesy of KIA MOTORS AMERICA, INC.

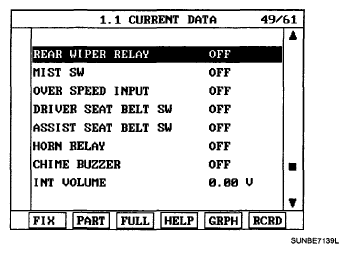

Fig 10: Scan Tool Display - REAR WIPER RELAY
Courtesy of KIA MOTORS AMERICA, INC.

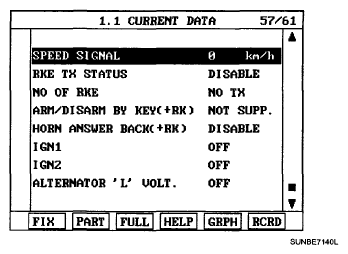

Fig 11: Scan Tool Display - SPEED SIGNAL
Courtesy of KIA MOTORS AMERICA, INC.
Use the actuation test mode to verify actuator operation.

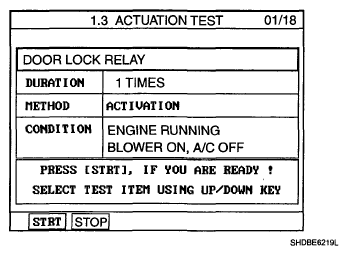

Fig 12: Scan Tool Display - ACTUATION TEST
Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Scan Tool Display - ACTUATION
Courtesy of KIA MOTORS AMERICA, INC.
You can turn ON/OFF as below option function with the user option program.
1. LOCK / UNLOCK confirming alarm: Alarm sound ON/OFF control when you LOCK/UNLOCK doors with transmitter.
2. Mechanical LOCKING system: Arm/Disarm ON/OFF when you lock the door with the mechanical key.
3. AUTO DOOR LOCK/UNLOCK system ON/OFF.
  - Vehicle speed gearing AUTO DOOR LOCK (more than 20km/h)
  - AUTO DOOR LOCK non application
  - Shift lever gearing AUTO DOOR LOCK
  - Driver seat AUTO DOOR LOCK
  - AUTO DOOR UNLOCK non application
  - All doors UNLOCK in the case of driver door UNLOCK
  - All doors UNLOCK in the case of IGN key separation.
4. Riding & Getting off gearing
  - Seat installation state ON/OFF
  - Seat riding & getting off gearing ON/OFF
  - Column installation state ON/OFF
  - Column riding & getting off gearing ON/OFF
