Output Shaft/Transfer Driven Gear

As shown in the illustration below, the transfer driven gear is press-fitted onto the output shaft, and the output shaft is secured by a locking nut and supported by bearings.

The locking nut has a left-handed thread, and a hexagonal hole in the other end of the shaft enables the shaft to be held in position for locking nut removal.

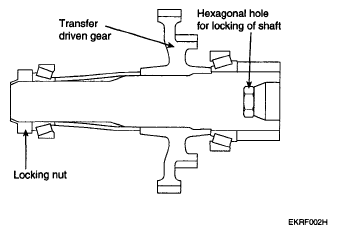

Fig 1: Identifying Output Shaft/Transfer Driven Gear
G05186287Courtesy of KIA MOTORS AMERICA, INC.
