Upper Arm: Installation

  1. Install the rear upper arm (C) between the rear cross member and the carrier assembly and then tighten the mounting bolts and nut (A, B).

    Tightening torque N.m (kgf.m, lb-ft)

    110-130 (11.0-13.0, 80-94)

    CAUTION: Install the rear upper arm so that the letter "R" can face the rear of vehicle.

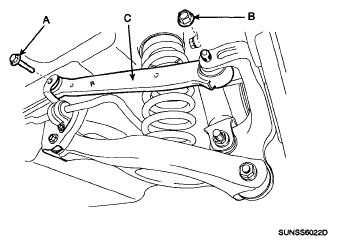

    Fig 1: Identifying Rear Upper Arm Mounting Bolts And Nut
    G05186943Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the rear wheel and tire.

    Tightening torque N.m (kgf.m, lb-ft):

    90-110 (9.0-11.0, 65-80)

    CAUTION: Be careful not to damage the hub bolts when installing the rear wheel and tire.
