Fuel Delivery System (G4KC - GSL 2.4L)
>>
Component Location
Component Location

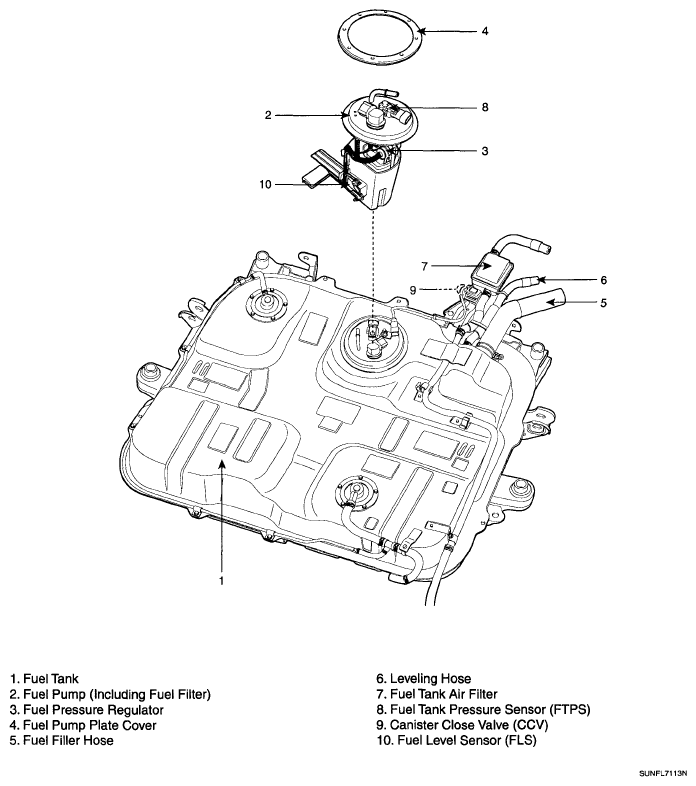

Fig 1: Identifying Fuel Delivery System Component Locations
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
