Clutch Cover And Disc: Components

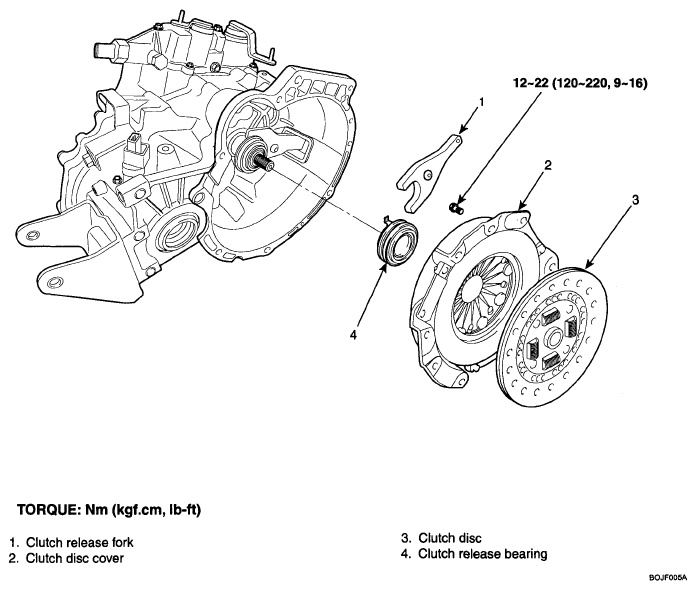

Fig 1: Clutch Cover And Disc Replacement Components With Torque Specifications

G04862399

Courtesy of KIA MOTORS AMERICA, INC.
