Cooling System: Components

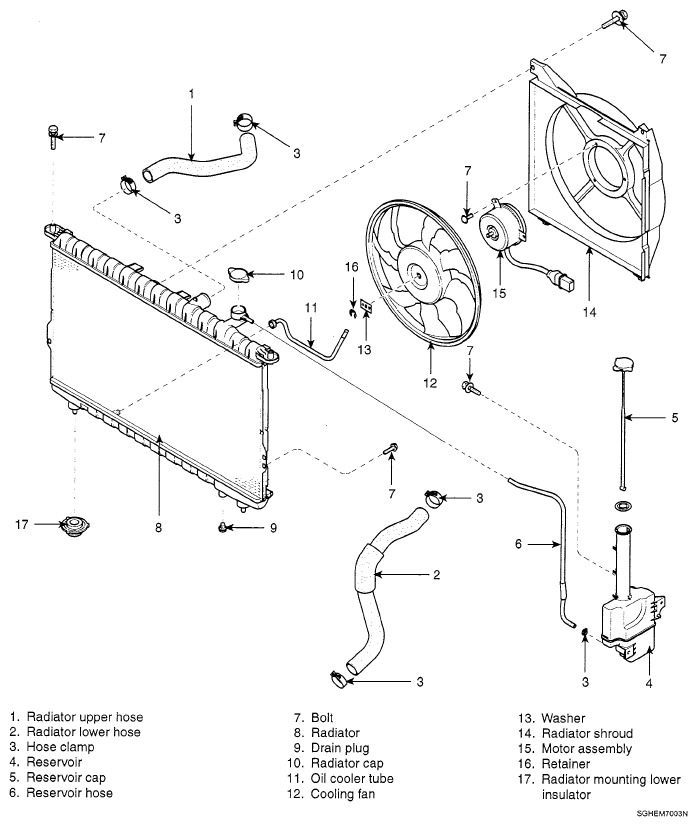

Fig 1: Cooling System Replacement Components With Torque Specifications (1 Of 2)
G05116148Courtesy of KIA MOTORS AMERICA, INC.

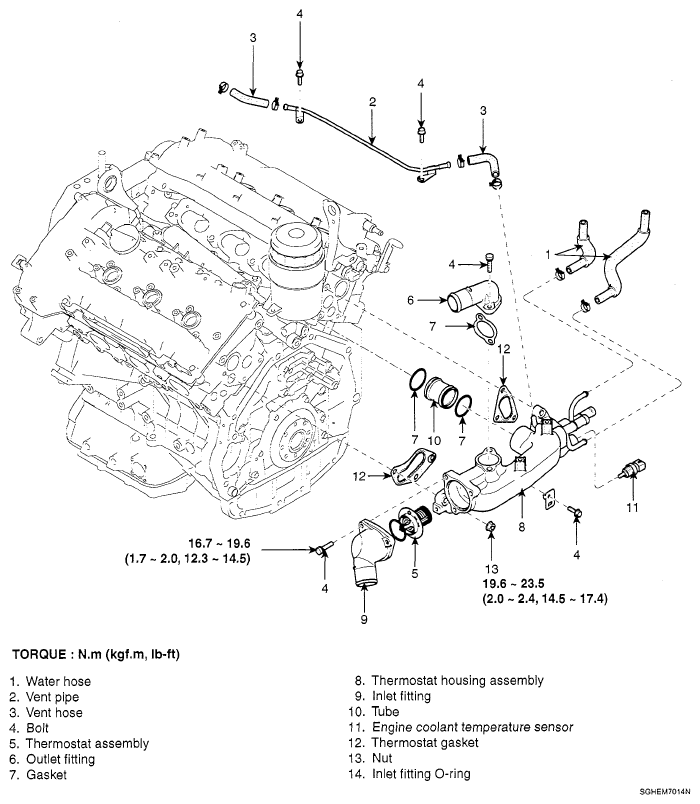

Fig 2: Cooling System Replacement Components With Torque Specifications (2 Of 2)
G05116149Courtesy of KIA MOTORS AMERICA, INC.
