Front Lower Arm: Installation

Install the lower arm mounting bolts (A).
Tightening torque :

A bushing:

100~120 Nm (10~12 Kgf.m, 72~86 lb-ft)

G bushing:

100~140 Nm (10~14 Kgf.m, 72~101 lb-ft)

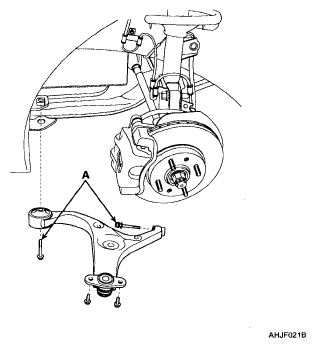

Fig 1: Identifying Lower Arm Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the lower arm ball joint mounting bolts (A).
Tightening torque :

100~120 Nm (10~12 Kgf.m, 72~86 lb-ft)

Fig 2: Identifying Lower Arm Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install the front wheel and tire (A) on the front hub (B).
Tightening torque :

90~110 Nm (9~11 Kgf.m, 65~79 lb-ft)

Fig 3: Identifying Front Wheel And Tire And Front Hub
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the hub bolts (C) then install the front wheel and tire (A).
