Audio System: Antenna: Replacement

  1. Remove the rear roof trim (Refer to INTERIOR TRIM ).
  2. Disconnect the 1P connector (A) and antenna jack (B) from the roof antenna.
  3. Remove the roof antenna after removing a nut.

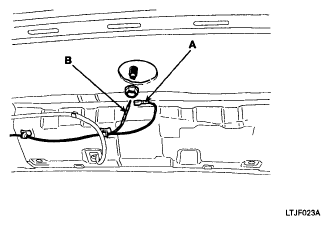

    Fig 1: Identifying 1P Connector And Antenna Jack
    G04863490Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
