EEPROM Abnormal

PROBABLE CAUSE CHART

Code No.P0605 EEPROM Abnormal	Probable cause
TCU saves "LEARNING VALUE" and keeps it at certain. Through this process in order to "LEARNING VALUE" is protected from being erased at disconnecting battery cable and maintaining related components.	PCM/TCM

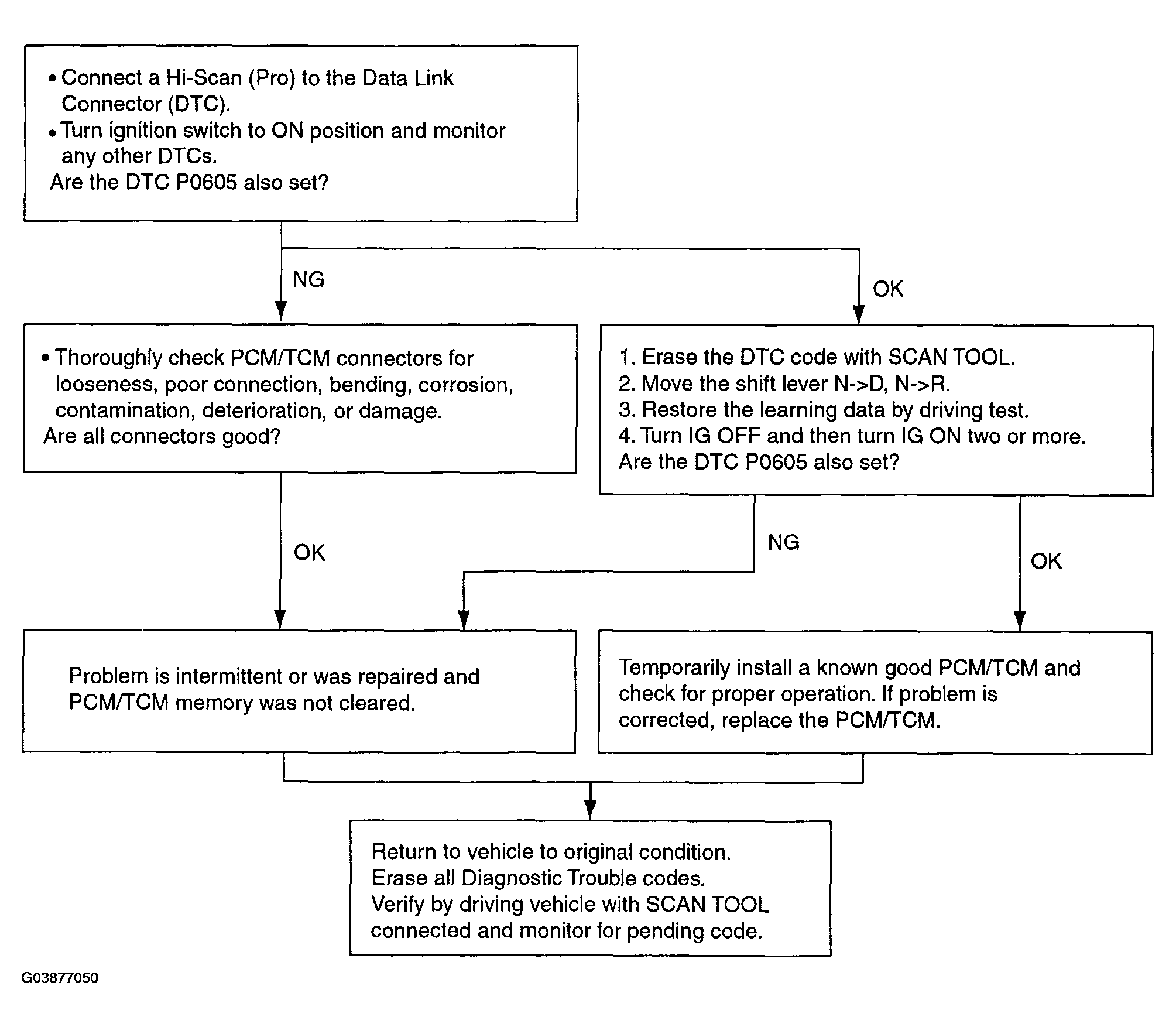

Fig 1: EEPROM Abnormal Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
