Inspection Procedure 9

PROBABLE CAUSE CHART

Shocks when changing from N to D, N to R and large time lag	Probable cause
If abnormal shocks or a time lag of 2 seconds or more occurs when the selector lever is shifted from N to D, N to R range while the engine is idling, the cause is probably abnormal line pressure or a malfunction of the oil pump or valve body.	Malfunction of the valve body Abnormal line pressure Malfunction of the oil pump

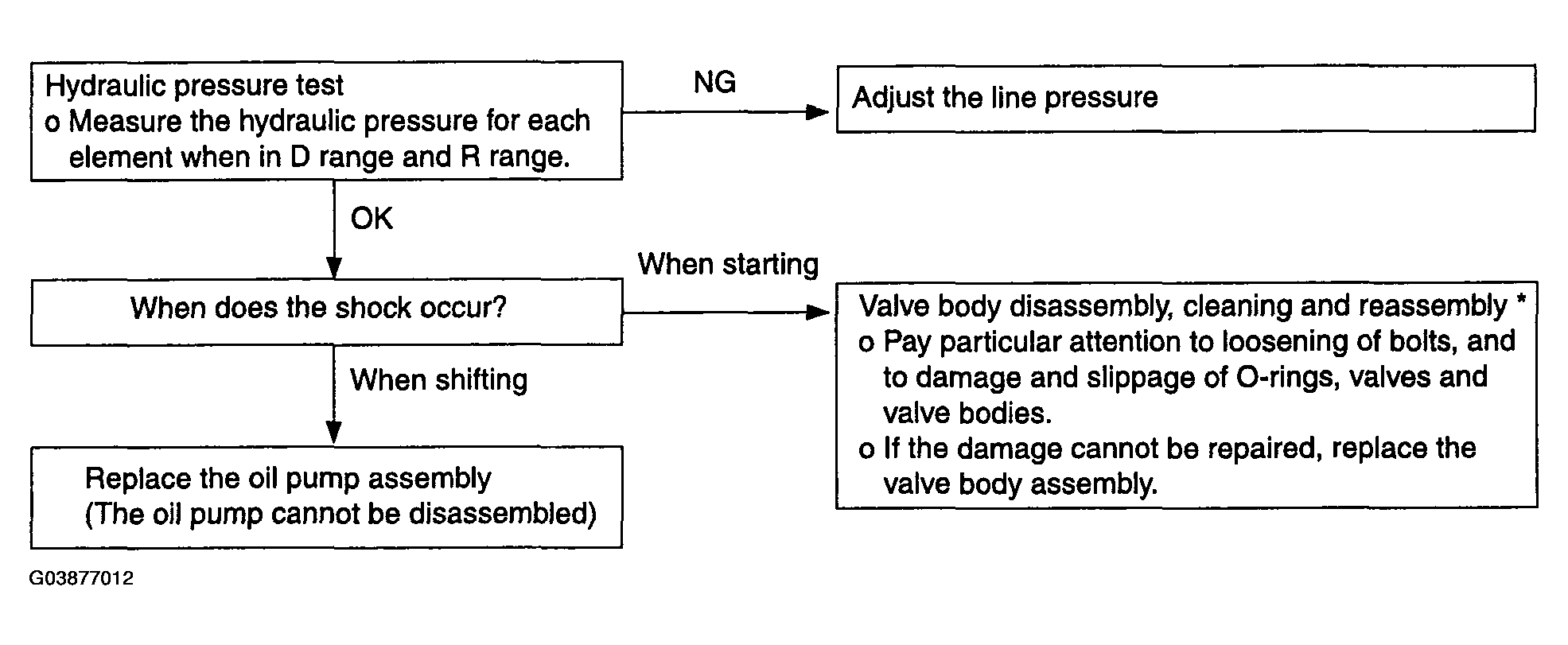

Fig 1: Inspecting Shocks Changing From N To D, N To R And Large Time Lag Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
