Brake Lamp Switch Error
Brake Lamp Switch Error

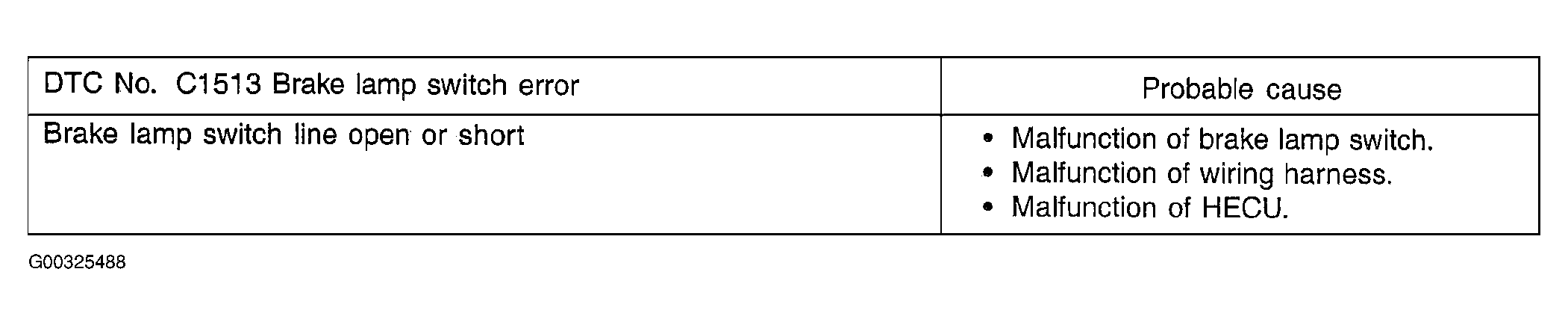

Fig 1: DTC C1513 Trouble Chart (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

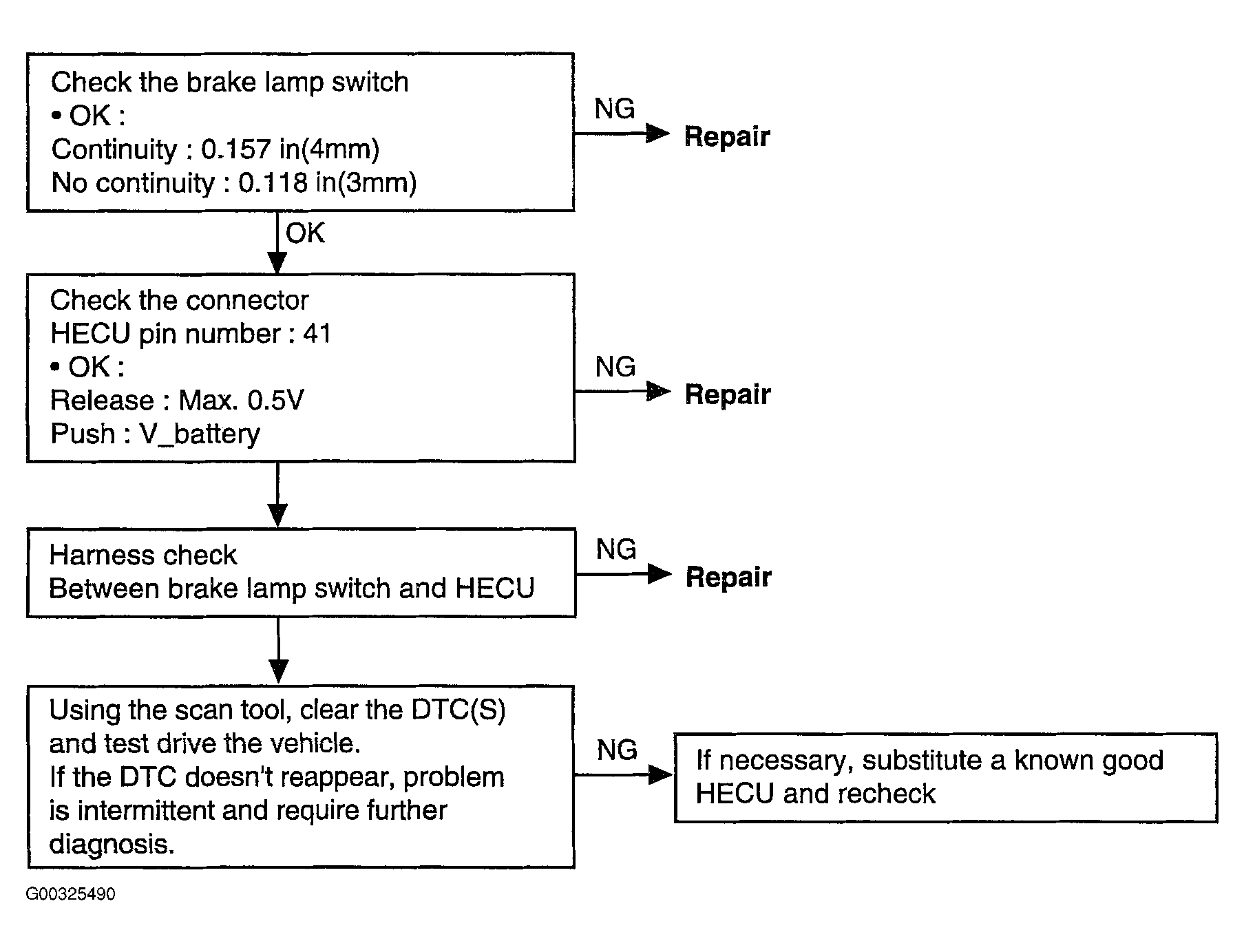

Fig 2: DTC C1513 Trouble Chart (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

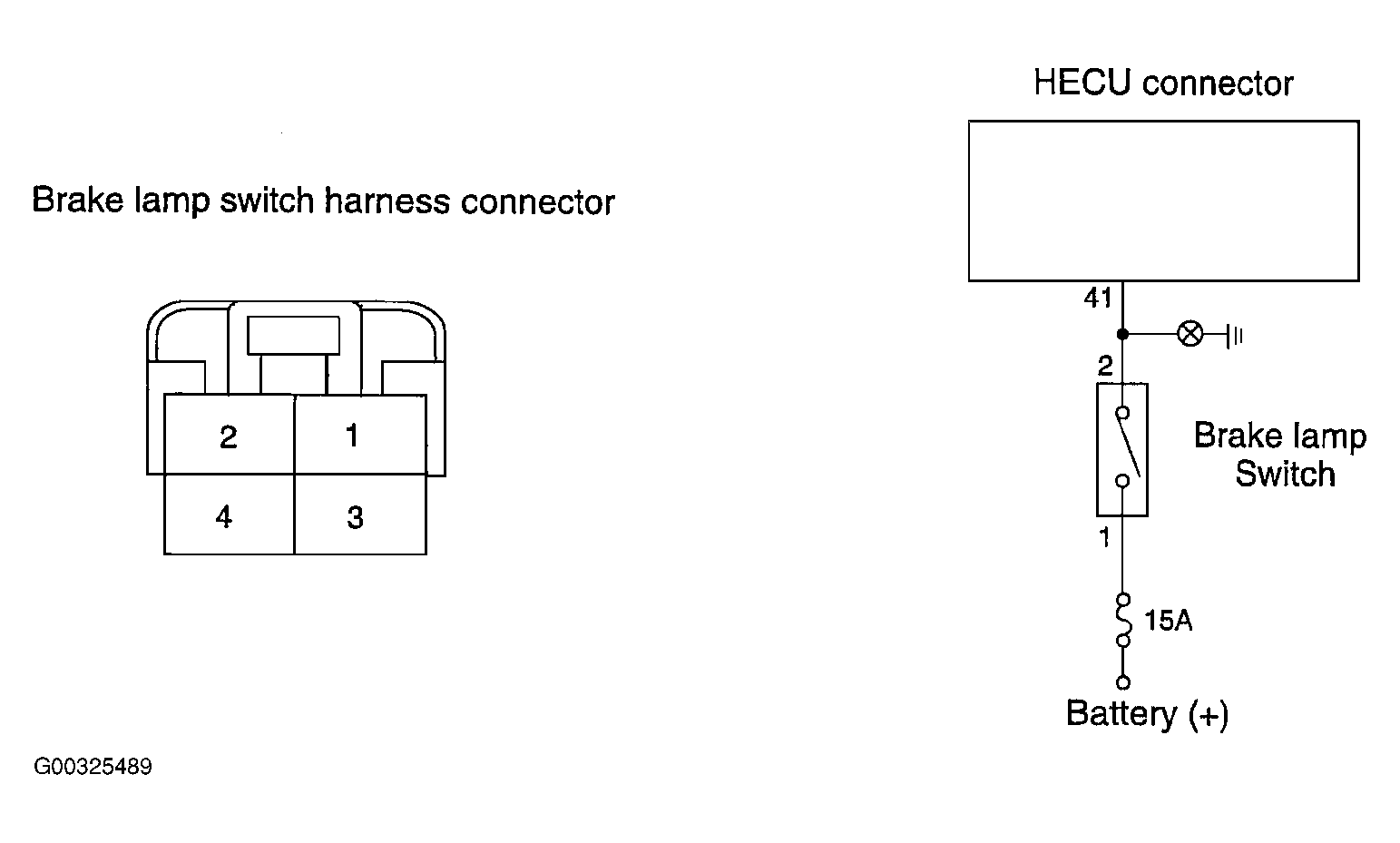

Fig 3: DTC C1513 Trouble Chart (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
