Input Shaft

  1. Check the outer surface of the input shaft where the needle roller bearing is mounted for damage or abnormal wear [portion (A)].

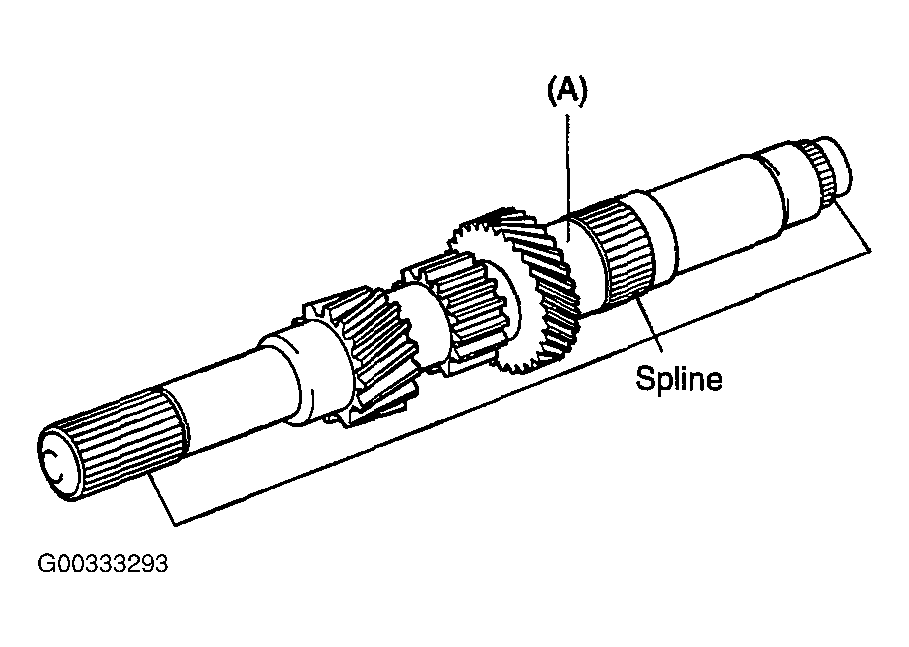

    Fig 1: Inspection Of Input Shaft
    G00333293Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the splines for damage or wear.
