Passenger Compartment Fuse Box: Notes

NOTE: Passenger compartment fuse box on models with 1.8L engine is located behind access panel on driver's side kick panel. Passenger compartment fuse box on models with 2.0L engine is located at bottom left side of instrument panel, on driver's knee bolster. See Fig 1.

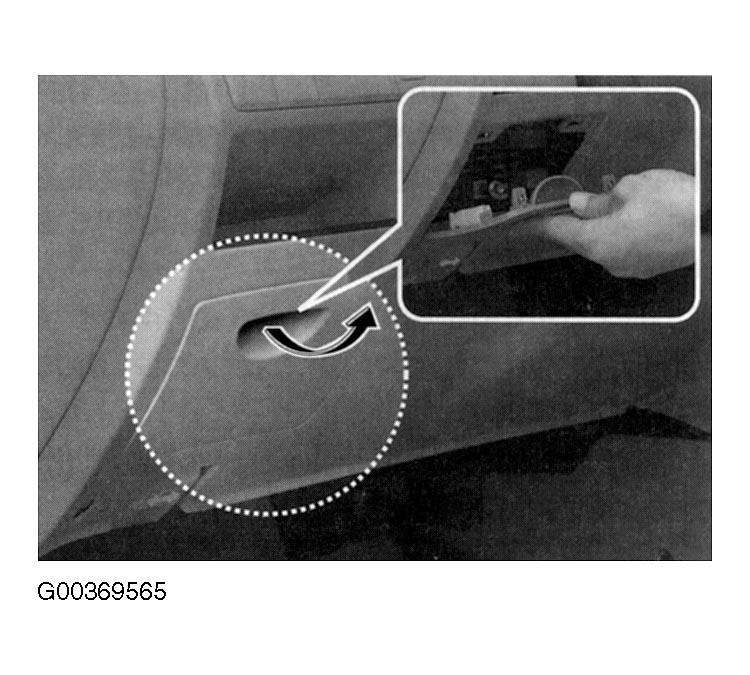

Fig 1: Locating Passenger Compartment Fuse Box (2.0L Engine)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Locating & Identifying Components On Passenger Compartment Fuse Box (1.8L Engine)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Locating & Identifying Components On Passenger Compartment Fuse Box (2.0L Engine)

Courtesy of KIA MOTORS AMERICA, INC.
