Main Fuse

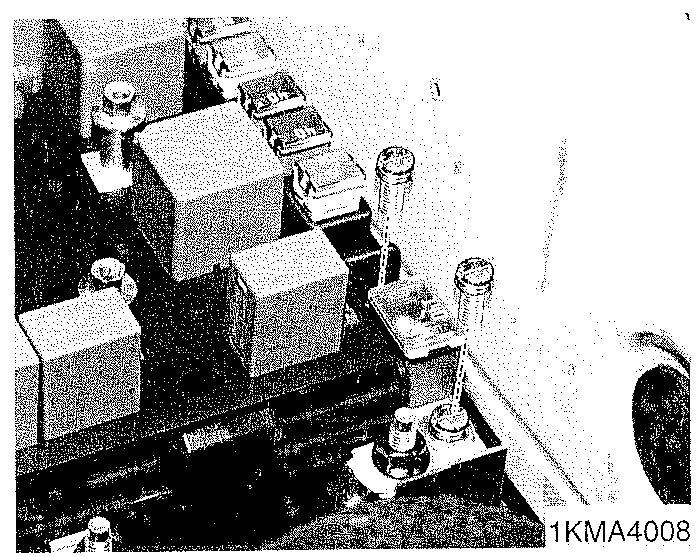

Fig 1: Identifying Fuse/Relay Box Main Fuse Components - Engine Compartment

Courtesy of KIA MOTORS AMERICA, INC.

If the ALT fuse is blown, it must be removed as follows:

1. Disconnect the negative battery cable.
2. Remove the screws shown in the illustration above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
