Dimmer And Passing Switch (Connector "1")

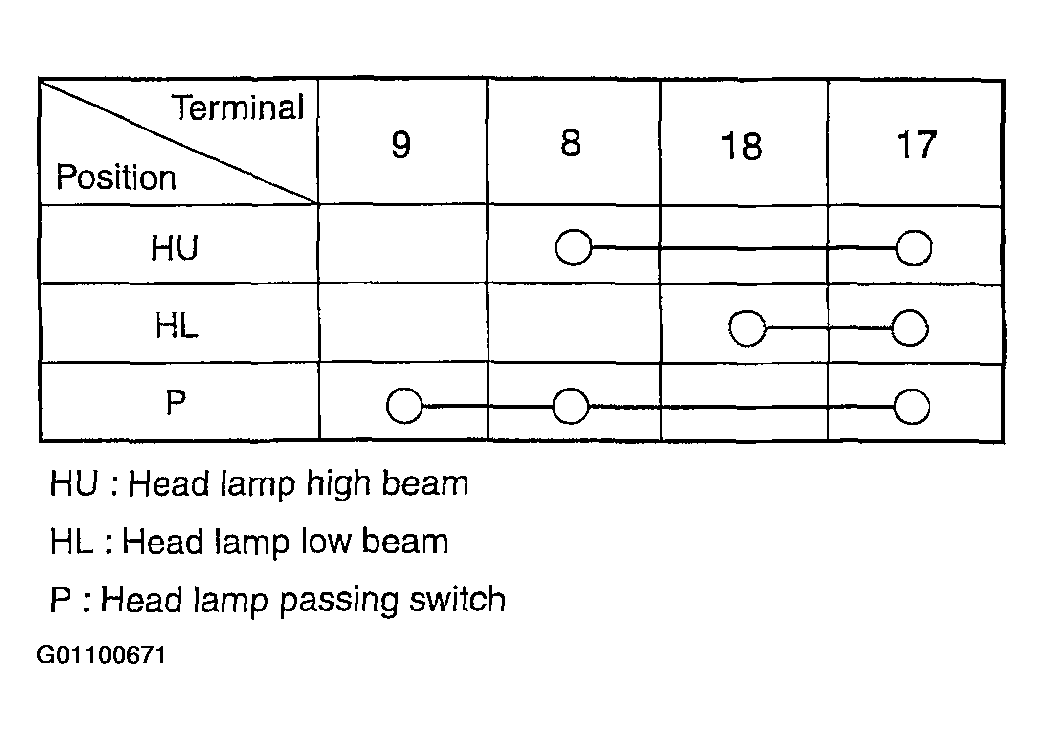

Fig 1: Checking Dimmer & Passing Switch
G01100671Courtesy of KIA MOTORS AMERICA, INC.
