Power Steering Oil Pump: Components

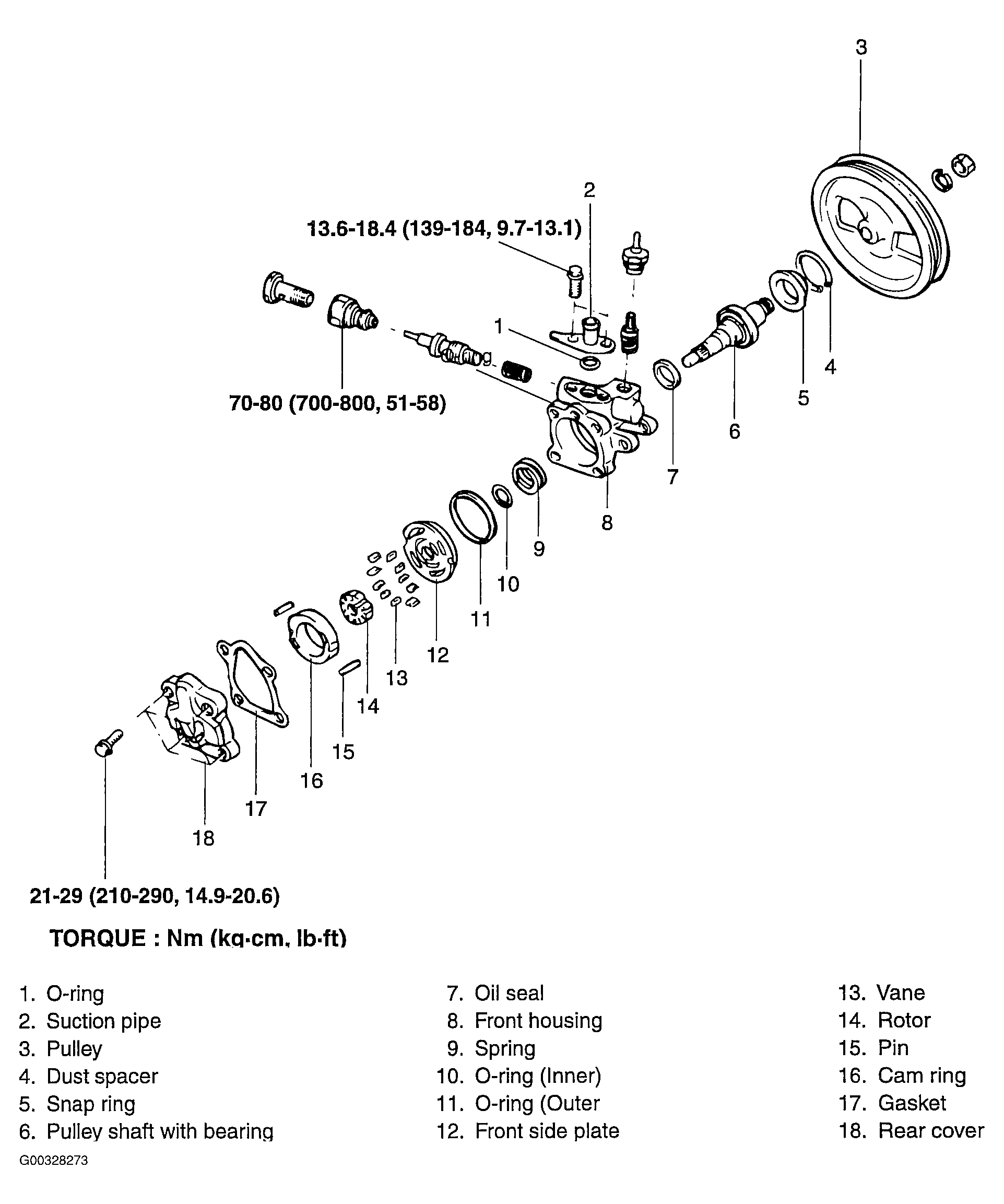

Fig 1: Exploded View Of Power Steering Oil Pump
G00328273Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: Be sure to cover the Generator with a protector when servicing the oil pump.
