Overfill Limiter (Two Way Valve)
>>
Inspection
>>
Two-Way Valve
Two-Way Valve
Inspect that air flows as shown.
Check to connect correctly such as the arrow mark on the valve.

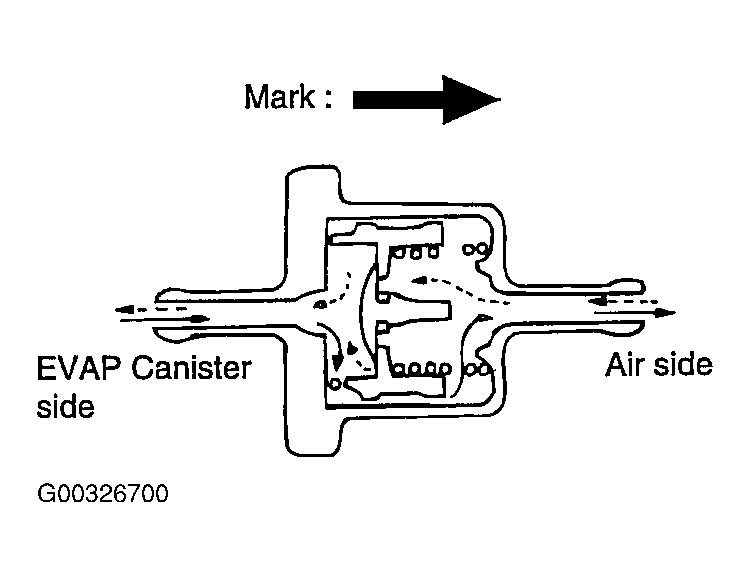

Fig 1: Checking 2-Way Valve
Courtesy of KIA MOTORS AMERICA, INC.
