Battery Visual Inspection (1)

CHECKING FLOW

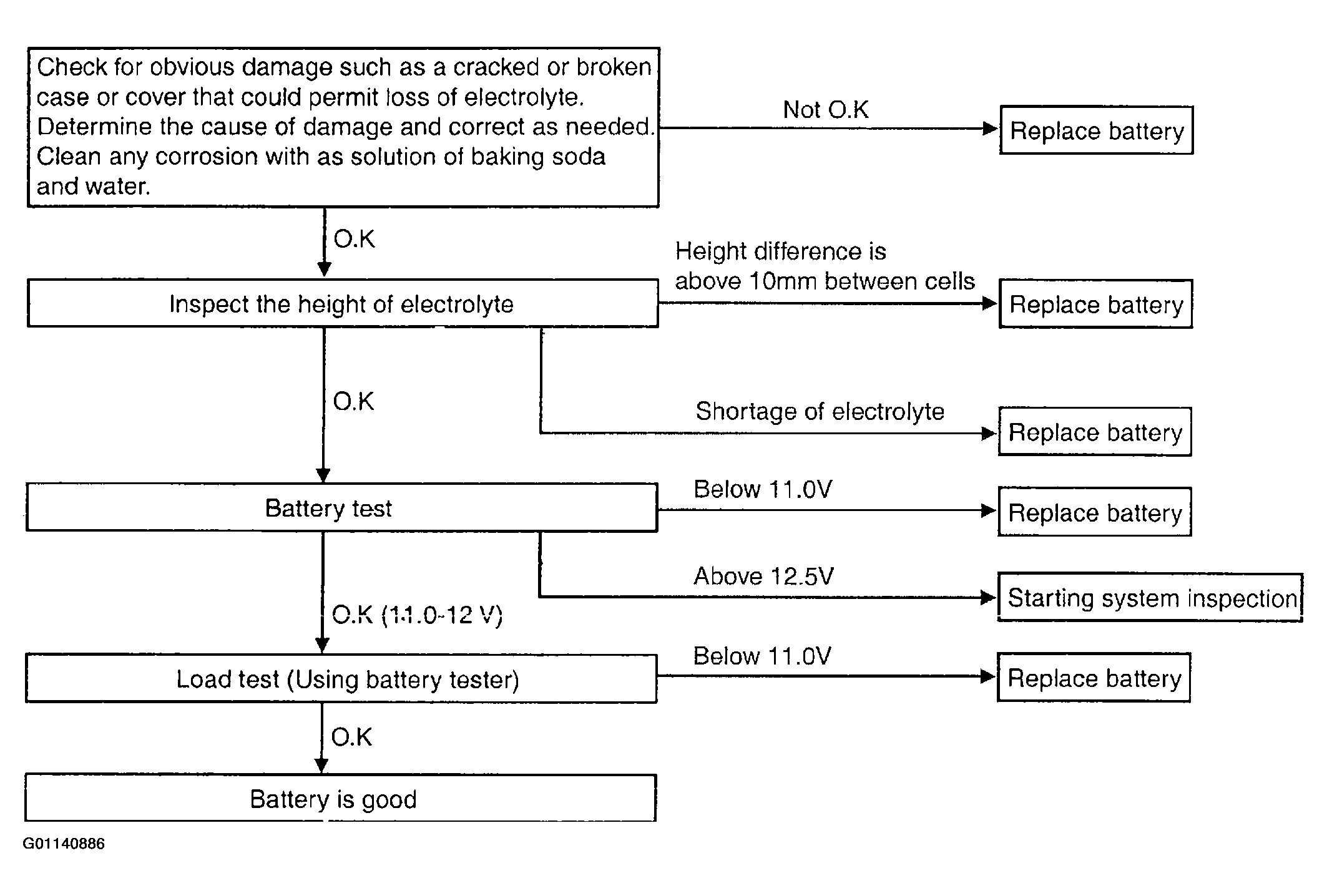

Fig 1: Battery Visual Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
CHECKING SHEET

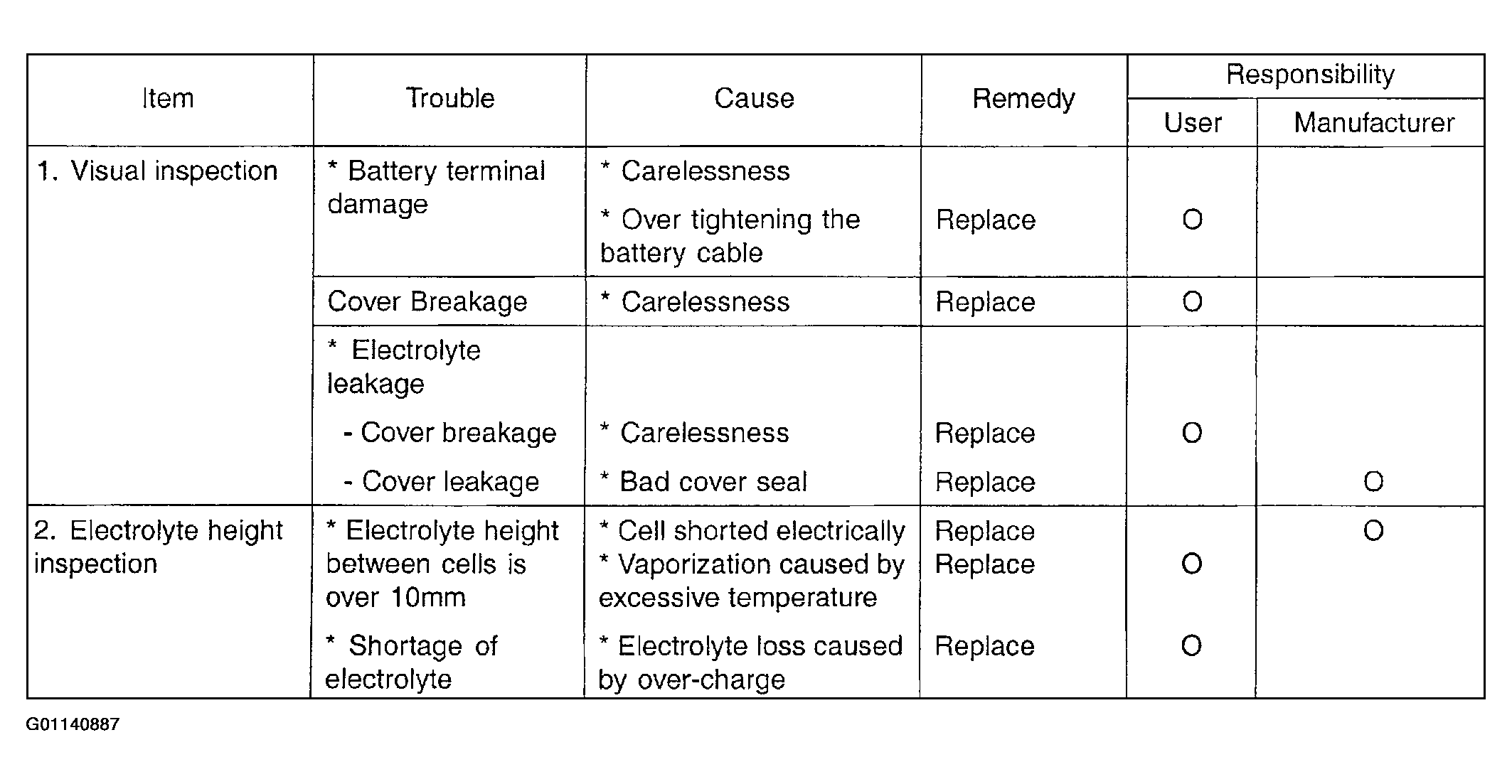

Fig 2: Battery Visual Check Sheet (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

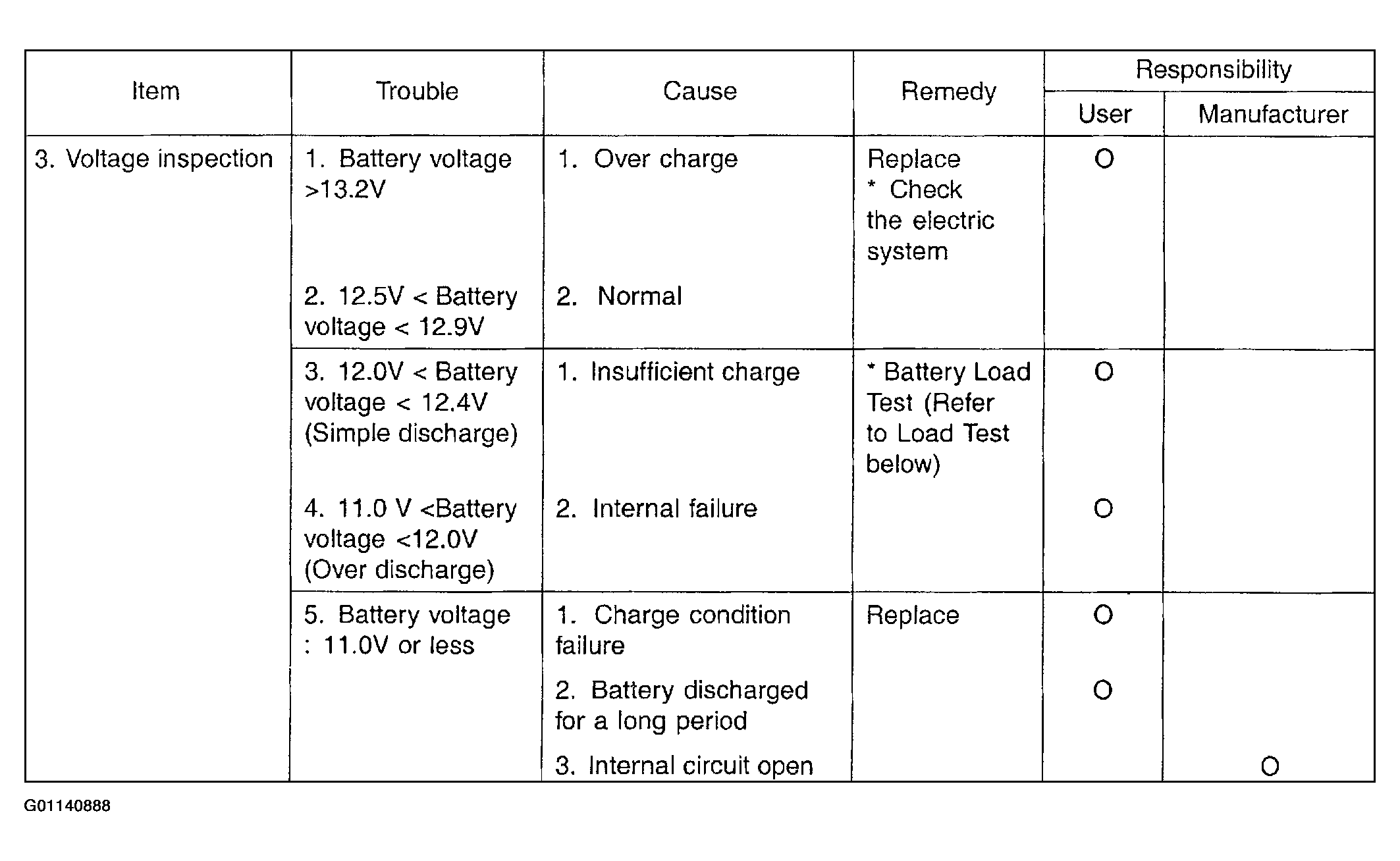

Fig 3: Battery Visual Check Sheet (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
LOAD TEST

When discharging the battery during 15 seconds at half currency of Cold Cranking Power (CCP), the voltage of the battery should be as shown below.

Fig 4: Regulating Voltage Table
Courtesy of KIA MOTORS AMERICA, INC.
When the voltage is not within specification, repeat the load test again, and re-charge.
If the battery is left alone for 2 hours after re-charging and its output is over 12.5V, and the voltage after a load test is over the standard value, the battery can be used.
