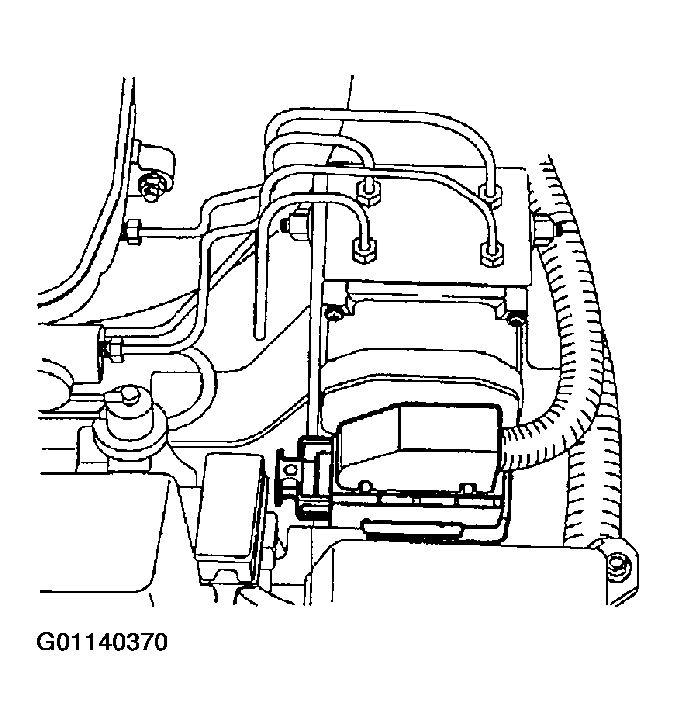

Anti-Lock Braking System Control Module: Removal
- Disconnect the HECU (Hydraulic and electronic Control Unit) and motor connector.
- Disconnect the brake lines from the HECU.
- Remove the HECU mounting nut, HECU bracket bolt and the HECU.
CAUTION:
- Never attempt to disassemble the HECU.
- The HECU must be transported and stored in the upright position and with sealed ports. The HECU must not be drained.
