Input-Output Specification

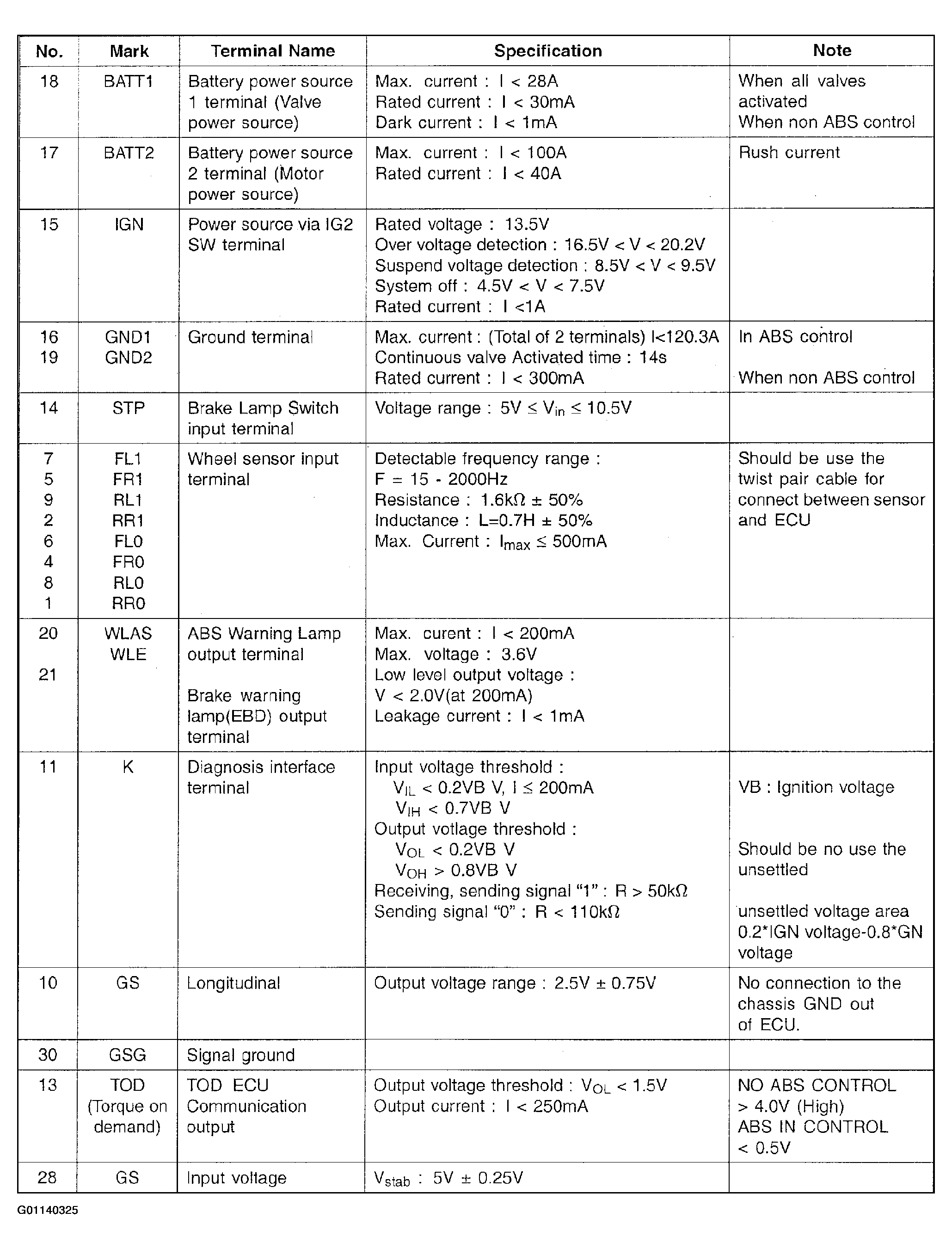

Fig 1: HECU Input-Output Specification Chart
G01140325Courtesy of KIA MOTORS AMERICA, INC.
