Audio Remote Control: Inspection

  1. Connect an ohmmeter to the 1 and 3 terminal of remote control connector.

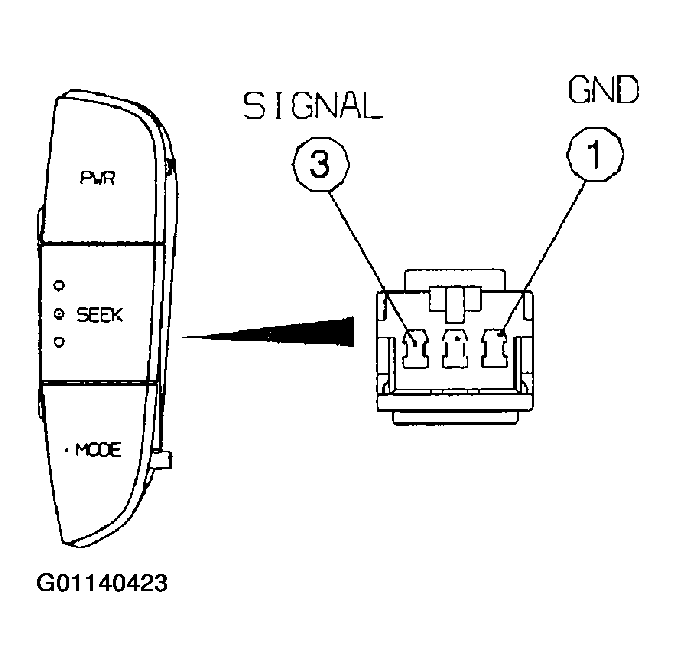

    Fig 1: Connecting Ohmmeter
    G01140423Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the resistance between 1 and 3 terminal when each switch is operated.

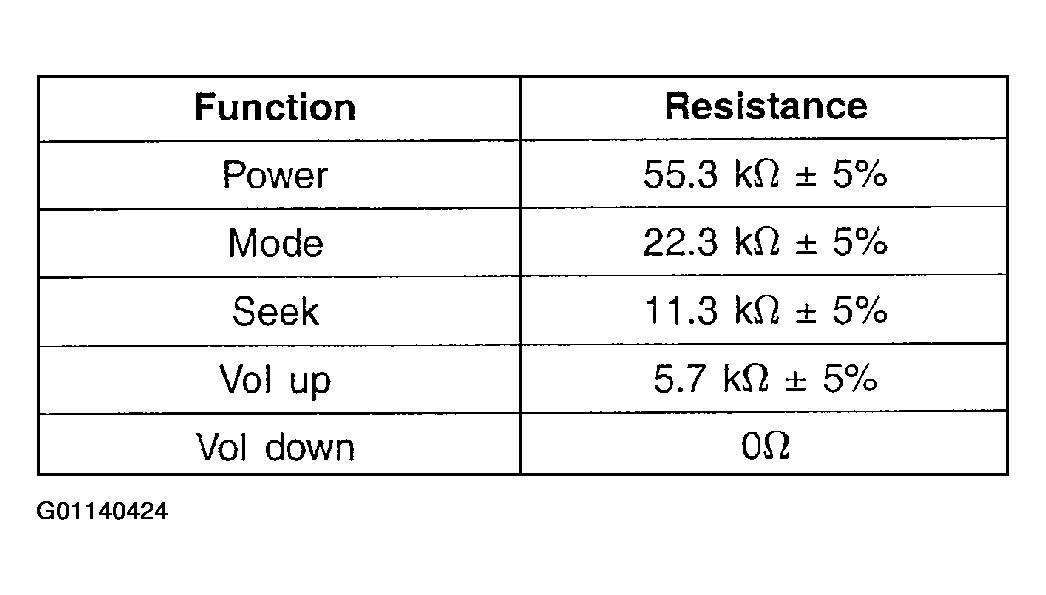

    Fig 2: Testing Remote Control Continuity
    G01140424Courtesy of KIA MOTORS AMERICA, INC.

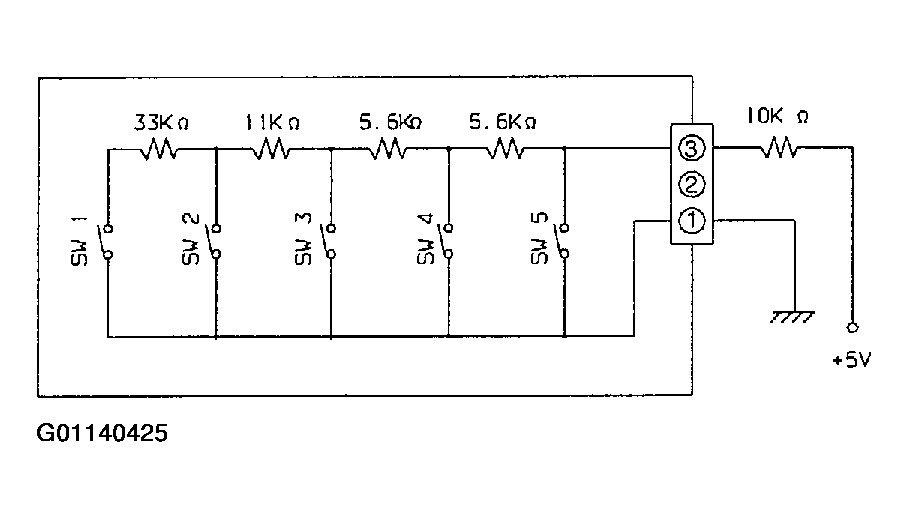

    Fig 3: Circuit Diagram
    G01140425Courtesy of KIA MOTORS AMERICA, INC.
